    Crossbow Triggers/Locks

    benjaminh123
    avatar
    benjaminh123
    Techno Weeny

    Lets put a laser on it!!!


    Techno WeenyLets put a laser on it!!!


    Posts : 54
    Join date : 2015-02-23
    • Post n°1

    Crossbow Triggers/Locks Empty Crossbow Triggers/Locks

    Post by benjaminh123 Sat Mar 07, 2015 3:19 pm

    p { margin-bottom: 0.25cm; line-height: 120%; }
    Could any of you upload a relatively simple crossbow lock? I am wanting it to have a gun like trigger, not a long tickler.
    • Back to top
    c sitas
    avatar
    c sitas
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 547
    Join date : 2012-11-24
    • Post n°2

    Crossbow Triggers/Locks Empty Re: Crossbow Triggers/Locks

    Post by c sitas Sun Mar 08, 2015 5:15 pm

    Ben, go to the home page on here . Scroll down to crossbow resources. Go through that whole section very slow and deliberate. It has a couple of links to many ,many triggers. Take your pick.
    • Back to top
    kenh
    kenh
    kenh
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 883
    Join date : 2012-08-03
    Age : 75
    Location : Living Aboard a Sailboat in Fort Myers, FL
    • Post n°3

    Crossbow Triggers/Locks Empty Re: Crossbow Triggers/Locks

    Post by kenh Sun Mar 08, 2015 6:30 pm

    Be aware that "relatively simple" and "gun-like trigger" do not necessarily go together.
    • Back to top
    hullutiedemies
    hullutiedemies
    hullutiedemies
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 202
    Join date : 2012-07-03
    Location : Fennoscandia
    • Post n°4

    Crossbow Triggers/Locks Empty Re: Crossbow Triggers/Locks

    Post by hullutiedemies Mon Mar 09, 2015 6:23 am

    This Yunnan trigger is easy
    http://www.atarn.org/chinese/yn_xbow/yn_xbow.htm
    http://www.atarn.org/chinese/yn_xbow/Image11.gif
    Modern pistol crossbows use practically same approach.
    • Back to top
    kenh
    kenh
    kenh
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 883
    Join date : 2012-08-03
    Age : 75
    Location : Living Aboard a Sailboat in Fort Myers, FL
    • Post n°5

    Crossbow Triggers/Locks Empty Re: Crossbow Triggers/Locks

    Post by kenh Mon Mar 09, 2015 6:33 am

    Have you ever shot one of those Yunnan style "trigger actions"?  I still have the crossbow I was given by villagers in the highlands of Vietnam back during the war.  Hard trigger pull?  HECK YA!  Not what a modern person considers normal, that's for dang sure -- on the order of 20# pull!
    • Back to top
    hullutiedemies
    hullutiedemies
    hullutiedemies
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 202
    Join date : 2012-07-03
    Location : Fennoscandia
    • Post n°6

    Crossbow Triggers/Locks Empty Re: Crossbow Triggers/Locks

    Post by hullutiedemies Mon Mar 09, 2015 10:56 am

    There is one
    https://thearbalistguild.forumotion.com/t689-paleo-legal-compound#8276

    Tested to about 110#
    Very soft and smooth trigger pull.

    Not the first one I have made. I chose it because I like it better than pin locks.
    • Back to top
    benjaminh123
    avatar
    benjaminh123
    Techno Weeny

    Lets put a laser on it!!!


    Techno WeenyLets put a laser on it!!!


    Posts : 54
    Join date : 2015-02-23
    • Post n°7

    Crossbow Triggers/Locks Empty Re: Crossbow Triggers/Locks

    Post by benjaminh123 Mon Mar 09, 2015 1:23 pm

    Any round nut type locks, but with a rifle style trigger? When I say rifle style, I am meaning vertical trigger, not horizontal like a medieval tickler.
    • Back to top
    benjaminh123
    avatar
    benjaminh123
    Techno Weeny

    Lets put a laser on it!!!


    Techno WeenyLets put a laser on it!!!


    Posts : 54
    Join date : 2015-02-23
    • Post n°8

    Crossbow Triggers/Locks Empty Re: Crossbow Triggers/Locks

    Post by benjaminh123 Mon Mar 09, 2015 9:12 pm

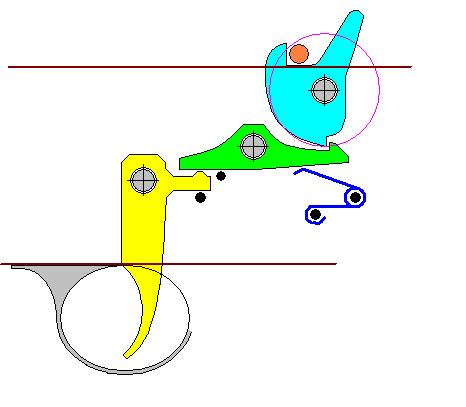

    How is this lock:
    Crossbow Triggers/Locks Post-910-1190928861
    • Back to top
    c sitas
    avatar
    c sitas
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 547
    Join date : 2012-11-24
    • Post n°9

    Crossbow Triggers/Locks Empty Re: Crossbow Triggers/Locks

    Post by c sitas Tue Mar 10, 2015 5:21 pm

    That would be a good choice. It would rather easy to fit a safety also.
    • Back to top
    benjaminh123
    avatar
    benjaminh123
    Techno Weeny

    Lets put a laser on it!!!


    Techno WeenyLets put a laser on it!!!


    Posts : 54
    Join date : 2015-02-23
    • Post n°10

    Crossbow Triggers/Locks Empty Re: Crossbow Triggers/Locks

    Post by benjaminh123 Tue Mar 10, 2015 9:33 pm

    What about this one:
    Crossbow Triggers/Locks Trigger13
    Is the one on the left, or the right better?
    • Back to top
    c sitas
    avatar
    c sitas
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 547
    Join date : 2012-11-24
    • Post n°11

    Crossbow Triggers/Locks Empty Re: Crossbow Triggers/Locks

    Post by c sitas Wed Mar 11, 2015 5:13 pm

    The one on the right. Has hard faces and adjustment The pull would be more stout than the other one you showed.
    • Back to top
    benjaminh123
    avatar
    benjaminh123
    Techno Weeny

    Lets put a laser on it!!!


    Techno WeenyLets put a laser on it!!!


    Posts : 54
    Join date : 2015-02-23
    • Post n°12

    Crossbow Triggers/Locks Empty Re: Crossbow Triggers/Locks

    Post by benjaminh123 Wed Mar 18, 2015 5:48 pm

    I have decided to go with the first lock; one more question though, is it better to lean more toward the angle shown in the drawing below (exaggerated of course in the drawing), or perfectly straight?
    Crossbow Triggers/Locks Untitl10
    • Back to top
    c sitas
    avatar
    c sitas
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 547
    Join date : 2012-11-24
    • Post n°13

    Crossbow Triggers/Locks Empty Re: Crossbow Triggers/Locks

    Post by c sitas Wed Mar 18, 2015 6:52 pm

    The angle on green piece and the one on the blue have to be perfect 90°. If they arn't you'll have all sorts of troubles,any thing from "it won't hold safely" ---to man I can't pull the trigger. Pay close attention here.
    • Back to top
    Hermit
    avatar
    Hermit
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 245
    Join date : 2013-09-10
    • Post n°14

    Crossbow Triggers/Locks Empty Re: Crossbow Triggers/Locks

    Post by Hermit Thu Mar 19, 2015 11:38 am

    All of the trigger designs you've shown have serious faults,but faults which can be put right.When the nut is released,it rotates with considerable force,and needs to be stopped in the correct position for re-cocking. In the series of 3 drawings 2 make provision for this,but the sear tip is going to take a hammering.The third(on the right)makes no provision for stopping nut rotation.
                                                                   To prevent over rotation an extra notch in the nut which either contacted a stop,or compressed a spring would work. when building the trigger mechanism the best way to obtain the accurate relationship between the nut and sear would be to drill the sideplate sear pivot holes,make the sear over size,and carefully file it to fit.This would compensate for any inaccuracy in the positioning of the sear pivot holes.
                                                                             Hermit.
    • Back to top
    benjaminh123
    avatar
    benjaminh123
    Techno Weeny

    Lets put a laser on it!!!


    Techno WeenyLets put a laser on it!!!


    Posts : 54
    Join date : 2015-02-23
    • Post n°15

    Crossbow Triggers/Locks Empty Re: Crossbow Triggers/Locks

    Post by benjaminh123 Thu Mar 19, 2015 12:02 pm

    Thanks Hermit,
    I had planned to make a stop so the nut would stop in a good position for reckocking; I am planning on going with the first drawing I suggested
    • Back to top
