    Chu Ko Nu (Zhu ge nu) chinese repeating crossbow making process from china

    avatar
    stm2010
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows


    Posts : 46
    Join date : 2013-01-08

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china Empty Chu Ko Nu (Zhu ge nu) chinese repeating crossbow making process from china

    Post by stm2010 Mon Jul 18, 2016 12:31 am

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 0e352a12
    Whole profile



    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china F22b3612
    Left hand holding section

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china Ee840112
    Dragon head with four teeth


    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china D0ce6012
    Cocked state

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china Ecccd712
    Crossbow body and the section for holding the bamboo bow.

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 934b0b12
    Two cloud shaped plates prevent the horizontal displacement of magazine

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 5d1ea313
    bolts materials

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 95552212
    The iron head of bolts

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china Fabb4412


    The end of bolts are  cross shape curved. It will help the string hit the center line of bolt.

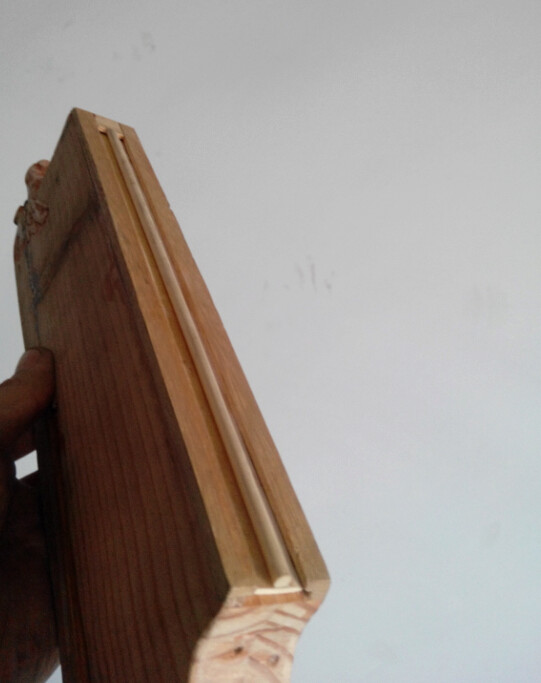

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china D3e89211
    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 4a4d9a11

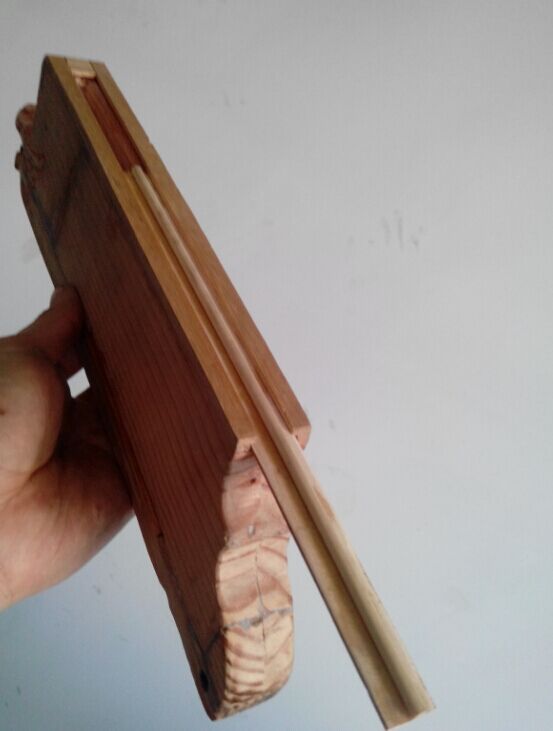

    A top plate can pull out and push into the magazine, help prevent the jumping of bolts.




    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china C1caaf12

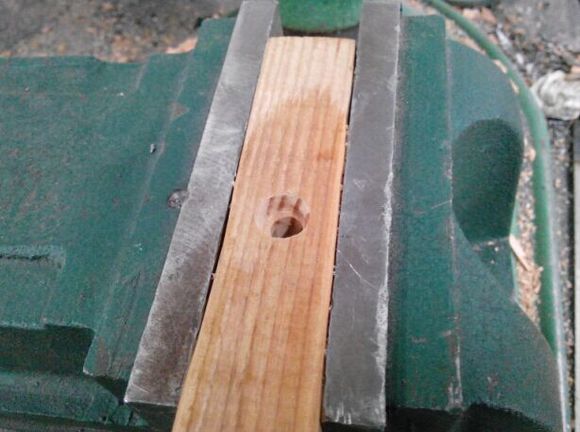

    Drill a hole for insert the trigger (Top is wider than below.)

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 07db5312
    Insert the trigger pin.

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china Bd16cb11
    Cut out a shallow path for bolts


    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 13227211
    The boundary slot for holding string is curved out to a "U" shape.

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 6e908e11
    Using round chisel to cut the barrel

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 564b9612
    Check and test the hitting

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 60becf11

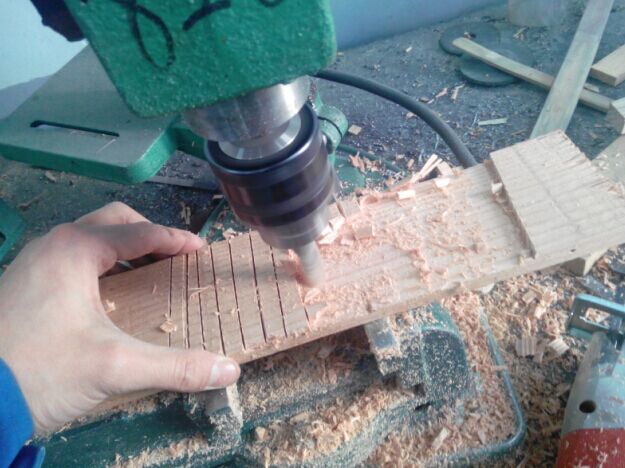

    Cut out room for stacking bolts

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china D33ba911
    Hold the two pieces together

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 9b2b9511
    Insert a short stick into the mouth of dragon prevent the sliping out the bolt while carrying.


    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 5d1ea314

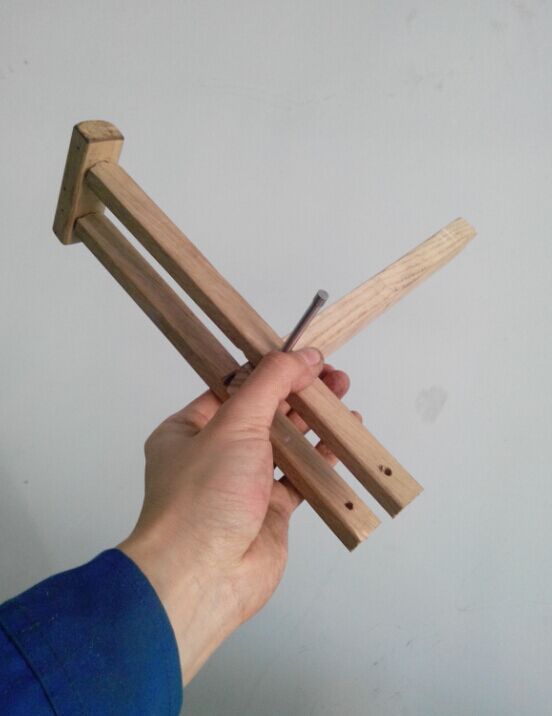

    Design the operation lever. (need  adjustments )

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 839db012
    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 68a8d212
    Using cheap bamboo as bow

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china F7eae212
    Polishing the bamboo bow


    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 3ae19b12
    Two piece bamboo plates tie together.


    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china Fb20ba11
    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 62117911
    Curve out the dragon head.

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 867f3612
    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china F531bb11
    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 414f4d11
    Using a littel magnet under the  iron head of bolt avoid sliping.


    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china D8177911
    Making string


    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 11f07411
    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china Ac164911

    Assemble and painting.
    avatar
    stm2010
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows


    Posts : 46
    Join date : 2013-01-08

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china Empty Re: Chu Ko Nu (Zhu ge nu) chinese repeating crossbow making process from china

    Post by stm2010 Mon Jul 18, 2016 12:42 am

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 5f77ff10
    As can be seen above, the red arrow head line means the force of string F1 and hand operate force F2, L2 is about 10 times of L1. That means if the bow is 200 pound when full cocked,the operate force may one tenth of bow (20 pound). This result is very intersting since the proportion of cock lever is changed during operating.


    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 7115a210
    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china 8919d210
    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china Add0b510

    Little Chu ko nu model
    kenh
    kenh
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 883
    Join date : 2012-08-03
    Age : 75
    Location : Living Aboard a Sailboat in Fort Myers, FL

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china Empty Re: Chu Ko Nu (Zhu ge nu) chinese repeating crossbow making process from china

    Post by kenh Mon Jul 18, 2016 5:38 am

    Very nice tutorial!  And beautifully done Dragon Bow!
    Gnome
    Gnome
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 451
    Join date : 2011-10-16
    Age : 60
    Location : North Georgia

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china Empty Re: Chu Ko Nu (Zhu ge nu) chinese repeating crossbow making process from china

    Post by Gnome Tue Jul 19, 2016 5:22 am

    Very nice indeed! One of these days...
    Gnome
    avatar
    c sitas
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 547
    Join date : 2012-11-24

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china Empty Re: Chu Ko Nu (Zhu ge nu) chinese repeating crossbow making process from china

    Post by c sitas Fri Jul 22, 2016 8:07 am

    Very good posting . Very clear. Would you have any idea as to how many man hours it takes to make it?In real action ,you can see how very deadly it could be.Thanks for your effort in this.
    actionbow
    actionbow
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 146
    Join date : 2012-09-18
    Age : 50
    Location : Portland, Oregon

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china Empty Re: Chu Ko Nu (Zhu ge nu) chinese repeating crossbow making process from china

    Post by actionbow Fri Nov 25, 2016 12:20 pm

    Love the magnet idea! I use two little brushes at the muzzle but this is much better.
    El Zurdo
    El Zurdo
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows


    Posts : 23
    Join date : 2016-11-24
    Age : 60
    Location : Ille sur Têt south of France

    Chu Ko  Nu (Zhu ge nu) chinese repeating crossbow making process from china Empty Re: Chu Ko Nu (Zhu ge nu) chinese repeating crossbow making process from china

    Post by El Zurdo Fri Nov 25, 2016 2:51 pm

    Very nice work, I also love the idea of magnets to keep the bolt plated and the end of bolts in cross shape curved.

    I maked a Chu Ko Nu dragon 5 years ago but on a smaller scale 1/4. Mine was ebony and boxwood carved with a multi-bamboo bow.
    It always works perfectly.
