    My second crossbow

    Daniel Levesque
    Daniel Levesque
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.

    Posts : 65
    Join date : 2016-12-06
    Location : Quebec, Canada

    My second crossbow Empty My second crossbow

    Post by Daniel Levesque on Wed Jun 07, 2017 8:32 pm

    Hello everyone,

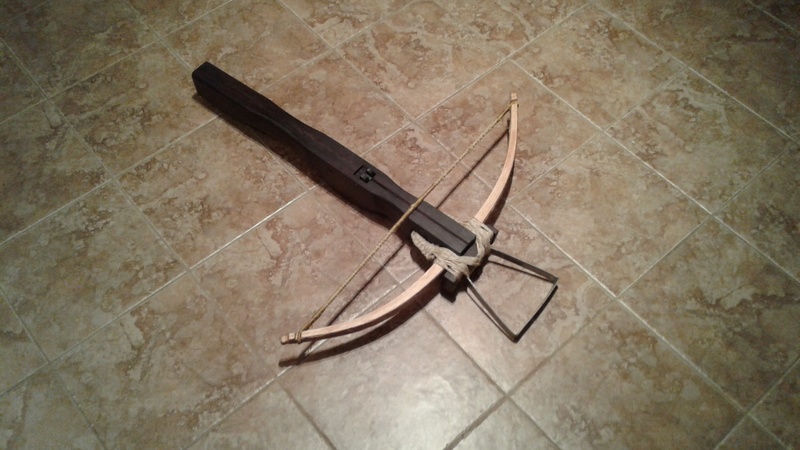

    Just posting some photos of my second build. it is an sinew backed hickory prod 30" ntn and braced at 4 inches, the draw length is 9 inches. Only the bottom edge is tapered, the top is flat. The tiller is ebony (quite heavy and I don't feel any recoil at all). I don't know the exact draw weight yet but it is A LOT tougher to wind back than my first crossbow which was 160 pounds. The roller nut is african blackwood with a metal seer.

    Lemme know what you guys think of it.

    My second crossbow 20170612My second crossbow 20170610My second crossbow 20170611
    Anatine Duo
    Anatine Duo
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.

    Posts : 64
    Join date : 2013-10-07
    Location : Muskoka, Canada

    My second crossbow Empty Re: My second crossbow

    Post by Anatine Duo on Thu Jun 08, 2017 3:21 am

    I like it.  THe heavier dimensions make it sort of cute in photos even though at 30" ntn it must be fairly large in person
    Daniel Levesque
    Daniel Levesque
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.

    Posts : 65
    Join date : 2016-12-06
    Location : Quebec, Canada

    My second crossbow Empty Re: My second crossbow

    Post by Daniel Levesque on Thu Jun 08, 2017 6:04 am

    It is quite large indeed but being somewhat large myself, I can handle it Smile

    The stock is 2 inches wide (with some tapering here and there) and 30 inches long as well and 3,5 inches high.
    avatar
    c sitas
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!

    Posts : 498
    Join date : 2012-11-24

    My second crossbow Empty Re: My second crossbow

    Post by c sitas on Fri Jun 09, 2017 2:54 pm

    Dan , a beautiful job. Cock it by hand or with help?
    Onager Lovac
    Onager Lovac
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?

    Posts : 120
    Join date : 2015-06-18
    Age : 28

    My second crossbow Empty Re: My second crossbow

    Post by Onager Lovac on Fri Jun 09, 2017 3:53 pm

    Thats awesome dude! X
    avatar
    Andy.
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.

    Posts : 86
    Join date : 2014-09-05

    My second crossbow Empty Re: My second crossbow

    Post by Andy. on Fri Jun 09, 2017 7:11 pm

    Sweet chunky unit... love it!

    Would be interesting to know the speed of this crossbow?

    How hard was the ebony to cut and shape?
    Daniel Levesque
    Daniel Levesque
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.

    Posts : 65
    Join date : 2016-12-06
    Location : Quebec, Canada

    My second crossbow Empty Re: My second crossbow

    Post by Daniel Levesque on Mon Jun 12, 2017 8:14 am

    C Sitas: I can cock it by hand but it's tough (the "I make all these strange sounds when cocking it" kind of though. Would be easier with a belt hook or rope and pulleys which I will probably do.

    Andy : The ebony is HELL to work with... I had to resharpen all my chisels but the product is classy. I don't think I'll work with ebony for a future crossbow though.
    Geezer
    Geezer
    Master Crossbowyer
    Master Crossbowyer

    Posts : 1098
    Join date : 2010-01-12
    Age : 71
    Location : Austin, Texas, USA

    My second crossbow Empty Re: My second crossbow

    Post by Geezer on Mon Jun 12, 2017 4:08 pm

    Yup, working ebony is hard on your tools... almost like working rock.  The same can be said for most rosewoods.  I ONCE made a crossbow stock from Brazilian jacaranda.  It was beautiful, weighed a ton, and I'll never do that again.
    Geezer.  (ps: a lot of these super-hard tropical hardwoods are highly allergenic and even a bit toxic.  Making one project out of rosewood isn't likely to kill you, but don't make a habit of it... even with the best dust/breather gear.
    Daniel Levesque
    Daniel Levesque
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.

    Posts : 65
    Join date : 2016-12-06
    Location : Quebec, Canada

    My second crossbow Empty Re: My second crossbow

    Post by Daniel Levesque on Fri Jun 16, 2017 10:48 am

    I'm working on a new one right now, a crossbow pistol with a mahogany tiller and fiberglass (feels like I'm cheating a tad though) prod. I'll post some photos quite soon but mahogany works REALLY well with good sharpened chisels.
