    New bullpup slide action bow in progress!

    actionbow
    actionbow
    actionbow
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 146
    Join date : 2012-09-18
    Age : 51
    Location : Portland, Oregon
    • Post n°1

    New bullpup slide action bow in progress! Empty New bullpup slide action bow in progress!

    Post by actionbow Mon Aug 05, 2013 9:48 pm

    Shooting for 16" stroke @ 180-190 lbs. Heavy recurve, 5 laminations, 36" bow measuring 32" unstrung.
    • Back to top
    Todd the archer
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 581
    Join date : 2010-02-25
    Age : 62
    Location : sellersville,pa.
    • Post n°2

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by Todd the archer Tue Aug 06, 2013 2:04 am

    Very interesting can't wait to see what you are working on.

    Todd
    • Back to top
    actionbow
    actionbow
    actionbow
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 146
    Join date : 2012-09-18
    Age : 51
    Location : Portland, Oregon
    • Post n°3

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by actionbow Sat Aug 31, 2013 3:09 pm

    New bullpup slide action bow in progress! C360_212
    • Back to top
    Gnome
    Gnome
    Gnome
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 451
    Join date : 2011-10-16
    Age : 60
    Location : North Georgia
    • Post n°4

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by Gnome Sat Aug 31, 2013 5:12 pm

    Interesting! More pictures, please.
    Gnome
    • Back to top
    actionbow
    actionbow
    actionbow
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 146
    Join date : 2012-09-18
    Age : 51
    Location : Portland, Oregon
    • Post n°5

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by actionbow Sat Aug 31, 2013 5:24 pm

    New bullpup slide action bow in progress! C360_215

    Almost at brace height.
    • Back to top
    actionbow
    actionbow
    actionbow
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 146
    Join date : 2012-09-18
    Age : 51
    Location : Portland, Oregon
    • Post n°6

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by actionbow Sat Aug 31, 2013 5:26 pm

    New bullpup slide action bow in progress! C360_216

    Exploded view.
    • Back to top
    actionbow
    actionbow
    actionbow
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 146
    Join date : 2012-09-18
    Age : 51
    Location : Portland, Oregon
    • Post n°7

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by actionbow Sat Aug 31, 2013 6:07 pm

    Next, trigger parts. Its made of purpleheart, bocote and ipe on the bow belly.
    • Back to top
    Todd the archer
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 581
    Join date : 2010-02-25
    Age : 62
    Location : sellersville,pa.
    • Post n°8

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by Todd the archer Sun Sep 01, 2013 3:56 am

    Looks great so far, is the prod all wood no glass?

    Curious to see how the trigger works.

    Todd
    • Back to top
    actionbow
    actionbow
    actionbow
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 146
    Join date : 2012-09-18
    Age : 51
    Location : Portland, Oregon
    • Post n°9

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by actionbow Sun Sep 01, 2013 5:43 am

    No, it has a layer of clear glass on the back. It goes: belly, ipe in two layers, hickory, purpleheart, glass.
    • Back to top
    actionbow
    actionbow
    actionbow
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 146
    Join date : 2012-09-18
    Age : 51
    Location : Portland, Oregon
    • Post n°10

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by actionbow Sun Sep 01, 2013 9:03 pm

    Oiled and tillering.

    New bullpup slide action bow in progress! C360_217
    • Back to top
    Todd the archer
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 581
    Join date : 2010-02-25
    Age : 62
    Location : sellersville,pa.
    • Post n°11

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by Todd the archer Mon Sep 02, 2013 3:56 am

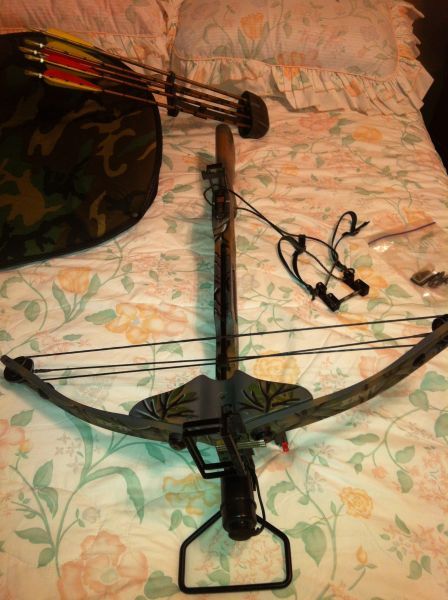

    Looks sharp, can you explain the slide action part? Hope your riser is strong enough. Here is a picture of a proline crossbow. It is the only crossbow that I know of that uses a wood riser with 2 separate limbs. It looks quite a bit beefier than yours but don't know if that would work with your design.
    New bullpup slide action bow in progress! P1357920675766494_zps5f490aec
    Still I hope yours works out.

    Todd
    • Back to top
    actionbow
    actionbow
    actionbow
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 146
    Join date : 2012-09-18
    Age : 51
    Location : Portland, Oregon
    • Post n°12

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by actionbow Mon Sep 02, 2013 9:29 am

    I wondered about that myself. It is reinforced with fiberglass on the bocote faceplate and backed with two bocote teardrop wedges but you may be right. I am considering a front stainless bridge to tie the two sides both layers together and prevent separation of the faceplate. I wanted to avoid it but it worked well on my cocobolo elephant bow. It's just heavy and slows arrow loading.
    • Back to top
    actionbow
    actionbow
    actionbow
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 146
    Join date : 2012-09-18
    Age : 51
    Location : Portland, Oregon
    • Post n°13

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by actionbow Mon Sep 02, 2013 9:31 am

    New bullpup slide action bow in progress! 2012-010
    • Back to top
    actionbow
    actionbow
    actionbow
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 146
    Join date : 2012-09-18
    Age : 51
    Location : Portland, Oregon
    • Post n°14

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by actionbow Mon Sep 02, 2013 9:34 am

    Here are two other wood, split limb risers I have made, both very successful but they are tied at the top by steel. First bow is only about 90# but this one is about 200#.

    New bullpup slide action bow in progress! 2012-011
    • Back to top
    actionbow
    actionbow
    actionbow
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 146
    Join date : 2012-09-18
    Age : 51
    Location : Portland, Oregon
    • Post n°15

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by actionbow Mon Sep 02, 2013 9:39 am

    This current bow started as a single limb bow but I couldn't stand the loss of performance I knew I would have with pressure on the barrel not to mention shorter string life, the pulling upward on limb tips etc.

    New bullpup slide action bow in progress! C360_218
    • Back to top
    Todd the archer
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 581
    Join date : 2010-02-25
    Age : 62
    Location : sellersville,pa.
    • Post n°16

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by Todd the archer Mon Sep 02, 2013 5:46 pm

    Keep us posted with your progress. I like it so far!

    Todd
    • Back to top
    Hermit
    avatar
    Hermit
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 245
    Join date : 2013-09-10
    • Post n°17

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by Hermit Sun Oct 20, 2013 8:49 pm

    No doubt in my mind at all Tink,you do beautifull work.
    • Back to top
    MoeM
    avatar
    MoeM
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows


    Posts : 4
    Join date : 2013-10-15
    Age : 40
    Location : Bavaria, Germany
    • Post n°18

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by MoeM Mon Oct 21, 2013 5:44 am

    Cool stuff they look awesome!
    The wooden prod mountings are great...
    Are the prods symetric and centercut and what does "slide action" mean?

    Regards Moe
    • Back to top
    Samuel Wilhelm
    Samuel Wilhelm
    Samuel Wilhelm
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows


    Posts : 18
    Join date : 2013-10-04
    Age : 27
    Location : Norway
    • Post n°19

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by Samuel Wilhelm Mon Oct 21, 2013 6:31 am

    you got a picture?
    • Back to top
    actionbow
    actionbow
    actionbow
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 146
    Join date : 2012-09-18
    Age : 51
    Location : Portland, Oregon
    • Post n°20

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by actionbow Mon Oct 21, 2013 7:07 am

    Look at page one wil. There are a couple pics.
    The prod is pressed and cut in half. Slide action refers to the gastraphetes style cocking mechanism.
    • Back to top
    actionbow
    actionbow
    actionbow
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 146
    Join date : 2012-09-18
    Age : 51
    Location : Portland, Oregon
    • Post n°21

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by actionbow Mon Oct 21, 2013 7:16 am

    I am currently working on the 4th generation prod design for this bow. I am trying to get the most recurve I can practically engineer into the prod. One broke after 100 or so shots, one began to delaminate due to too thick of a hickory core and the last one was too heavy and began to split at the limb tips after 60 or so shots. The next one will have a bamboo core, osage and glass belly and hopefully be perfect. My goal is to push the limits of arrow speed without going to a compound design. I could have easily just made a reasonable, safe prod but where's the fun in that?
    • Back to top
    Sponsored content

    Sponsored content


    • Post n°22

    New bullpup slide action bow in progress! Empty Re: New bullpup slide action bow in progress!

    Post by Sponsored content

    • Back to top

      Current date/time is Thu Jan 23, 2025 2:51 pm
