    Russian Strizh crossbow

    Oppenheimer
    Oppenheimer
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 44
    Join date : 2012-10-25
    Location : Scandinavia

    Russian Strizh crossbow Empty Russian Strizh crossbow

    Post by Oppenheimer on Thu Jan 16, 2014 2:12 am

    Anyone who understands how the limbs lockingsystem works in this quick-lock limbsystem? Can anyone do a drawing of the limbs locking mechanism? I think it´s beautifully made.
    http://img-fotki.yandex.ru/get/4702/v-talik.20/0_667da_4213f4c6_L.jpg
    Russian Strizh crossbow 0_667da_4213f4c6_L
    avatar
    Blade sword
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 8
    Join date : 2013-01-19

    Russian Strizh crossbow Empty Re: Russian Strizh crossbow

    Post by Blade sword on Thu Jan 16, 2014 8:08 am

    No full view available of the machine ?
    avatar
    kenh
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!

    Posts : 831
    Join date : 2012-08-03
    Age : 72
    Location : Living Aboard a Sailboat in Fort Myers, FL

    Russian Strizh crossbow Empty Re: Russian Strizh crossbow

    Post by kenh on Thu Jan 16, 2014 11:02 am

    Yep... Need lots better photos of the contraption.  Post .jpgs here; some of us are gunshy about logging on to any Russian or former Soviet Republic websites.
    Ivo
    Ivo
    Admin
    Admin

    Posts : 1041
    Join date : 2009-11-25
    Age : 32
    Location : NJ, USA

    Russian Strizh crossbow Empty Re: Russian Strizh crossbow

    Post by Ivo on Tue Jan 21, 2014 12:39 am

    I got you Wink

    Have an album full of photos and some vids of that one (amongst other cool bows'n'bits in there).



    Was fascinated with this bow for quite a while back in the day. Short stroke, so it's gotta be pretty powerful in order to actually be of any use. Original one(Streletz) made by the Tula arms factory had limbs packing 100kg(roughly #300) draw weight. So take that into account.

    Also, pictures show adjustable riser and solid stock (later 3rd party additions/mods, original had shitty collapsible stock and non adjustable riser...both viewable in the album).

    We also talked about a trigger group that would allow for a sliding mech joined with the lever...I'll look that up or maybe some members remember it and can post a pic.

    This bow was made in two versions.

    Strizh...#80 pistol version.

    Russian Strizh crossbow D1F2F0E8E620-20005

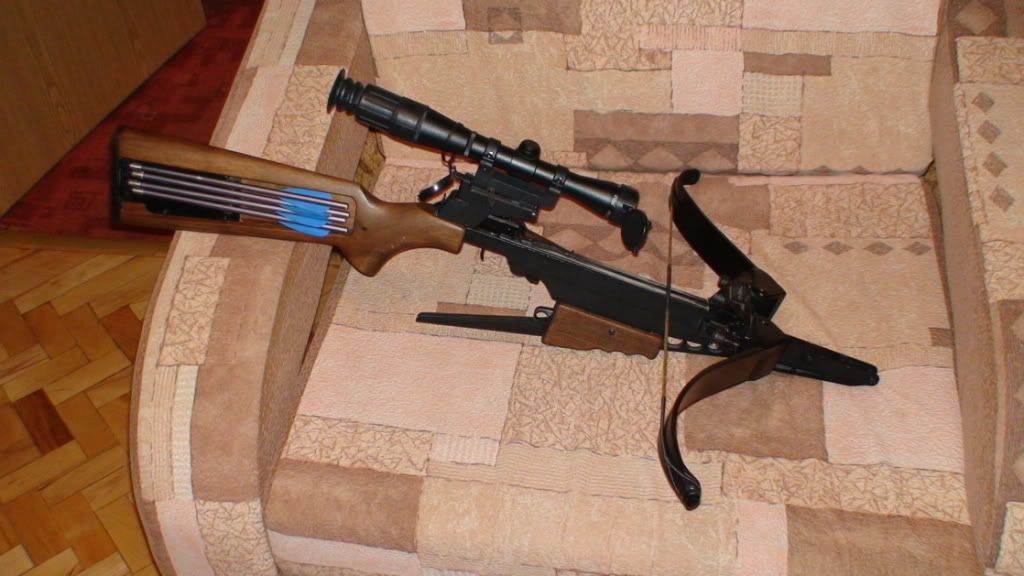

    Streletz...the big brother full size crossbow that is no longer manufactured.

    ~ Lots of lame conspiracy theories out there as to why it was discontinued (secret services using them and wot not)...all lame nonsense...just in Russia crossbows with limbs drawing more than #80(I think) are illegal.

    This one, however, just happened to be in the #300 range.

    Russian Strizh crossbow 103886018

    Ivo


    Last edited by Ivo on Tue Jan 21, 2014 12:59 am; edited 4 times in total



    Russian Strizh crossbow Untitled
    * *
    ~ "I don't have any special talents. I'm only passionately curious."
    * * *
    ~ "All Genius is Simple"
    * *
    Ivo
    Ivo
    Admin
    Admin

    Posts : 1041
    Join date : 2009-11-25
    Age : 32
    Location : NJ, USA

    Russian Strizh crossbow Empty Re: Russian Strizh crossbow

    Post by Ivo on Tue Jan 21, 2014 12:46 am

    This is the lever action explained.



    I think I'll love this bow to the grave. Nice piece of engineering. Smile

    Ivo



    Russian Strizh crossbow Untitled
    * *
    ~ "I don't have any special talents. I'm only passionately curious."
    * * *
    ~ "All Genius is Simple"
    * *
    Oppenheimer
    Oppenheimer
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 44
    Join date : 2012-10-25
    Location : Scandinavia

    Russian Strizh crossbow Empty Re: Russian Strizh crossbow

    Post by Oppenheimer on Thu Jan 23, 2014 1:51 am

    Thank´s for all the pictures Ivo. I still don´t understand the way the limbs fastening system works on the pistolmodel. It´s a quick release different from the bigger crossbow-version. In the last video you see the guy leaning the limbsystem a bit uppwards/forwards before lovering the nearer side of it down where it locks in some way. A stearing pin on each side can be seen in your picture here https://s303.photobucket.com/user/karman333/media/Ninja/bcc42e834021.jpg.html?sort=3&o=66

    So can anyone understand how this quickrelease works?

    Another question is how the mechanism looks inside the crossbow. I mean that part of the inner limb system that´s behind steelplates. What pieces are moving and which of them are not?

    No question in thath this is the crossbow of bows and if you put the magasine in the mechanism it´s a perferct semiautomatic mini-crossbow. The genious fourlevel-cranking system can handle big power in a short p-stroke which as you say Ivo, gets a very small and powerfull (and maybe in the future, a semiautomatic) bow.

    Who can make the prints/gifs or charts of the system so we fully can understand it and maybe develope it a bit?

    My greetings to the Tula engineers (and Ivo´s picture collection) Very Happy
