    Heavy German sporting crossbow build

    avatar
    Lien93
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 36
    Join date : 2012-08-23

    Heavy German sporting crossbow build Empty Heavy German sporting crossbow build

    Post by Lien93 Thu Aug 23, 2012 2:26 pm

    Thought I'd share this on the forum

    This is a project I'm working on and its going to be covered in ebony and bone when finished.

    Internal components still have to be made

    Prod and cranequin is made by me.

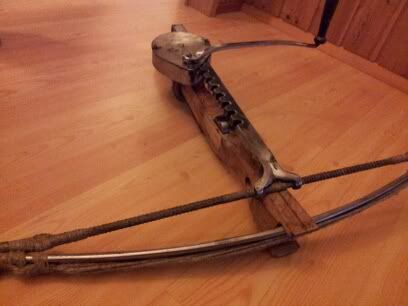

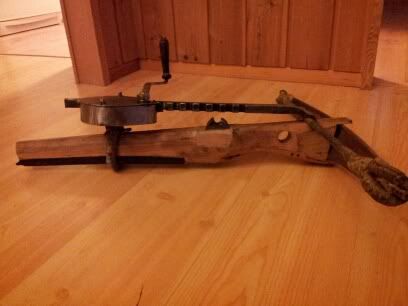

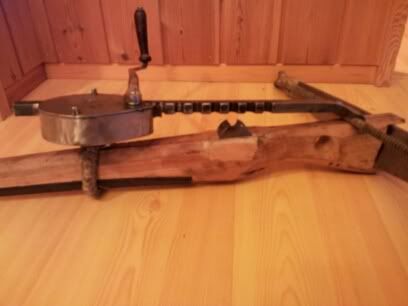

    Heavy German sporting crossbow build 20120823_205820

    Heavy German sporting crossbow build 20120823_205030

    Heavy German sporting crossbow build 20120823_204204
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!

    Posts : 581
    Join date : 2010-02-25
    Age : 59
    Location : sellersville,pa.

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Todd the archer Thu Aug 23, 2012 3:35 pm

    Looks good, any idea how strong the prod is? Any details you could share with us on the bow string?



    Keep us posted,



    Todd
    avatar
    chaz
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!

    Posts : 313
    Join date : 2012-04-13
    Age : 72
    Location : Texas

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by chaz Thu Aug 23, 2012 7:32 pm

    Lien93,

    What a piece of work ! It would be nice to see the details of the cranequin, so far so great!

    Chaz
    avatar
    Guest
    Guest

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Guest Fri Aug 24, 2012 9:34 am

    gone


    Last edited by Gui on Sun Sep 02, 2012 1:27 pm; edited 1 time in total
    avatar
    Lien93
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 36
    Join date : 2012-08-23

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Lien93 Sat Aug 25, 2012 12:00 pm

    The prod is at about 600 to 1000 lb ( don't have a scale that takes that much). Prod was made from a leaf spring with forged ends. String is artificial sinew and is 13 mm thick with reinforced loops and knotted linen servings.

    Will try to take some pictures of the cranequin later.
    avatar
    Lien93
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 36
    Join date : 2012-08-23

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Lien93 Mon Aug 27, 2012 11:22 am

    More pictures of the cranequin, decided to change the top cover into a more ornate one. still some fine tweaking on the gears left, but it works alright.

    Heavy German sporting crossbow build DSC_0147

    Heavy German sporting crossbow build DSC_0144

    Heavy German sporting crossbow build DSC_0143

    Heavy German sporting crossbow build DSC_0142
    mac
    mac
    Master Weaponsmith
    Master Weaponsmith

    Posts : 560
    Join date : 2010-12-23
    Location : Near Philly USA

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by mac Mon Aug 27, 2012 12:24 pm

    Lein,

    Did you make the crank pinion by welding the "leaves" to the shaft?

    Mac
    avatar
    Lien93
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 36
    Join date : 2012-08-23

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Lien93 Mon Aug 27, 2012 12:35 pm

    mac wrote:Lein,

    Did you make the crank pinion by welding the "leaves" to the shaft?

    Mac

    Yes I did, but It's barely visible because of all the grease
    avatar
    Lien93
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 36
    Join date : 2012-08-23

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Lien93 Thu Aug 30, 2012 11:22 am

    Ran into a problem while fitting the trigger system. It turns out the cranequin is in the way of the hole for resetting the trigger, any sugestions?

    Just ordered the ebony veneers and the bone for this one too, cant wait to finish it.
    avatar
    chaz
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!

    Posts : 313
    Join date : 2012-04-13
    Age : 72
    Location : Texas

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by chaz Thu Aug 30, 2012 8:32 pm

    Lien,

    Did you make the main gear sprocket or did you make use of an existing one.............. if one is available I say use it. By the way, is it customary to remove the cranquin before firing? ( probably comes under the heading of stupid queations) But I don't know.

    Chaz
    avatar
    Rizzar
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?

    Posts : 194
    Join date : 2012-08-11
    Location : Germany

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Rizzar Thu Aug 30, 2012 10:25 pm

    Normally the cranequin is just for spanning purpose on the crossbow and shouldnt be in the way for resetting the trigger.

    I guess you probably want to reset the trigger when the cranequin lifts the string into the roller nut and not before putting the cranequin on?

    If you can´t reset it before spanning it would probably be a mechanism design problem. you should be able to prepare everything before spanning.


    But i can imagine where the problem with that is. perhaps you cant lift the string over the secured nut.
    What kind of trigger mechanism are you going to use? lever or trigger? How many axles?
    Pictures would be nice.

    Very nice work, especially the cranequin.
    Your string looks like a gothic knot, is it one?


    greetings Rizzar
    avatar
    Lien93
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 36
    Join date : 2012-08-23

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Lien93 Fri Aug 31, 2012 3:31 am

    Its a 2 axle trigger, its perhaps possible to push under the nut or from one of the sides
    avatar
    Guest
    Guest

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Guest Fri Aug 31, 2012 7:05 am

    gone


    Last edited by Gui on Sun Sep 02, 2012 1:27 pm; edited 1 time in total
    avatar
    Lien93
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 36
    Join date : 2012-08-23

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Lien93 Fri Aug 31, 2012 9:34 am

    Gui wrote:Thank you for sharing details of your cranequin Lien93. You have given me some great ideas there for producing one myself;

    I feel confident in making the ratchet bar, the bit that has always concerned me was making the cogs/sprockets - i'm going to have a look at using an old bike sprocket and copy your welded crank pinion. Just need to brush up those welding skills... currently spend more time dressing the welds with a grinder than actually welding!!
    Cheers
    Gui

    For the gears you only need a angle grinder and a drill press. Proper measuring instruments is a must
    avatar
    fiddler49
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 19
    Join date : 2012-06-16

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by fiddler49 Sun Sep 02, 2012 8:07 pm

    Very nice bow, but why would you put a nylon string on it? Fake sinew is really stretchy stuff!!!
    avatar
    Lien93
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 36
    Join date : 2012-08-23

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Lien93 Mon Sep 03, 2012 10:18 am

    I used the fake sinew because it was the only thing available at the time, it don't stretch that bad actually.
    avatar
    Lien93
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 36
    Join date : 2012-08-23

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Lien93 Mon Sep 03, 2012 11:41 am

    Considering to uppgrade the trigger from two to five axles to reduce the trigger weight and it will also let me reset the mechanism easier. (it also looks a lot cooler)

    Any input?
    avatar
    Lien93
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 36
    Join date : 2012-08-23

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Lien93 Mon Jan 21, 2013 1:19 pm

    A bit of progress on the build. The tiller is now completely covered in ebony, and most of the bone plates is in place, i still have to install the internal parts and a bit more metalwork.

    Heavy German sporting crossbow build DSC_0268

    Heavy German sporting crossbow build DSC_0269

    Heavy German sporting crossbow build DSC_0270
    ferdinand
    ferdinand
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!

    Posts : 301
    Join date : 2012-04-24

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by ferdinand Mon Jan 21, 2013 3:29 pm

    That is one verry verry beautifull crossbow! Did u make the cranequin from a design? And would u be willing to share it with me? I love it!
    avatar
    Lien93
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 36
    Join date : 2012-08-23

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Lien93 Mon Jan 21, 2013 3:38 pm

    The cranequin was designed as i built it, but it was not that hard to make. i can try to make some plans for it if you want to.
    avatar
    chaz
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!

    Posts : 313
    Join date : 2012-04-13
    Age : 72
    Location : Texas

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by chaz Tue Jan 22, 2013 5:06 am

    Lien03

    How much does the cranequin weigh ? Would please share your plan idea with the forum ? Your project shows very well that you have acquired a good many skills and put them to very good use ! The design on the bone work is really nice and likewise with all the other details such as lining the whole for the prod lashing with bone ......... over the TOP !

    Chaz
    ferdinand
    ferdinand
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!

    Posts : 301
    Join date : 2012-04-24

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by ferdinand Wed Jan 23, 2013 3:48 pm

    Lien93 wrote:The cranequin was designed as i built it, but it was not that hard to make. i can try to make some plans for it if you want to.
    If u want to that would be great!
    I could probably make one like u did but plans make it so much more easy!
    If anyone else has plans? That would save u the trouble!
    Thanks Lien!
    avatar
    chaz
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!

    Posts : 313
    Join date : 2012-04-13
    Age : 72
    Location : Texas

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by chaz Thu Jan 24, 2013 6:08 am

    Ferdi,

    The Payne- Gallwey book from pages 131 to 144 has some pretty good info and diagrams but no measurements on the cranequin devices , hopefully might be helpful.

    Chaz
    avatar
    Lien93
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 36
    Join date : 2012-08-23

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Lien93 Thu Jan 24, 2013 10:24 am

    I hope this helps Heavy German sporting crossbow build Cranequin2

    Request other wievs if necassary
    Archeress
    Archeress
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 15
    Join date : 2013-01-26
    Location : North Carolina

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Archeress Sat Jan 26, 2013 9:20 pm

    Fabulous crossbow! Is everybody on this forum some kind of genius artisan?

    Sponsored content

    Heavy German sporting crossbow build Empty Re: Heavy German sporting crossbow build

    Post by Sponsored content


      Current date/time is Sat Sep 25, 2021 3:37 pm
