    Post by Hotspur Wed Nov 14, 2012 5:07 pm

    Based on Alchems plan, parts. Attached are a few photos. I didn’t worry too much about keeping it medieval, i.e. it has a trigger safety, a rifle butt and an Excalibur rope pulley thing. Since these photos it has a red dot site Shocked. Some may be interested in the simple etching process using Iron Sulphite slurry and cathode/ anode. I hooked mine up to my 14v drill charger. The prod pictured is 175lb and I have a 225 on order. Haven’t made bolts yet or installed the stirrup.

    Here it is near finished:
    First crossbow 45

    Anchem parts, the prod is from Alchem as well:
    First crossbow 1

    Cathod/ Anode and a peanut butter jar...
    First crossbow 7

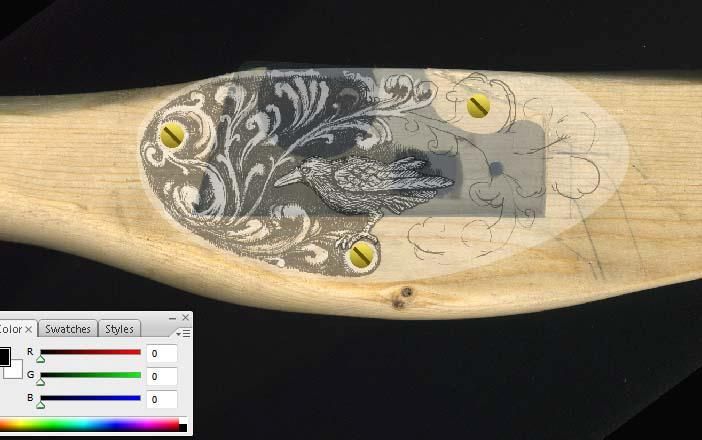

    Sketching the sideplate out in photoshop. Then print on glossy paper. Transfer the image onto steel with clothes iron. The toner acts as an etch resist.
    First crossbow 23

    Vogue magazine works well. Don't take your GFs French Vogue Evil or Very Mad
    First crossbow 25

    an hour in the stuff...
    First crossbow 26


    First crossbow 27

    First crossbow 28

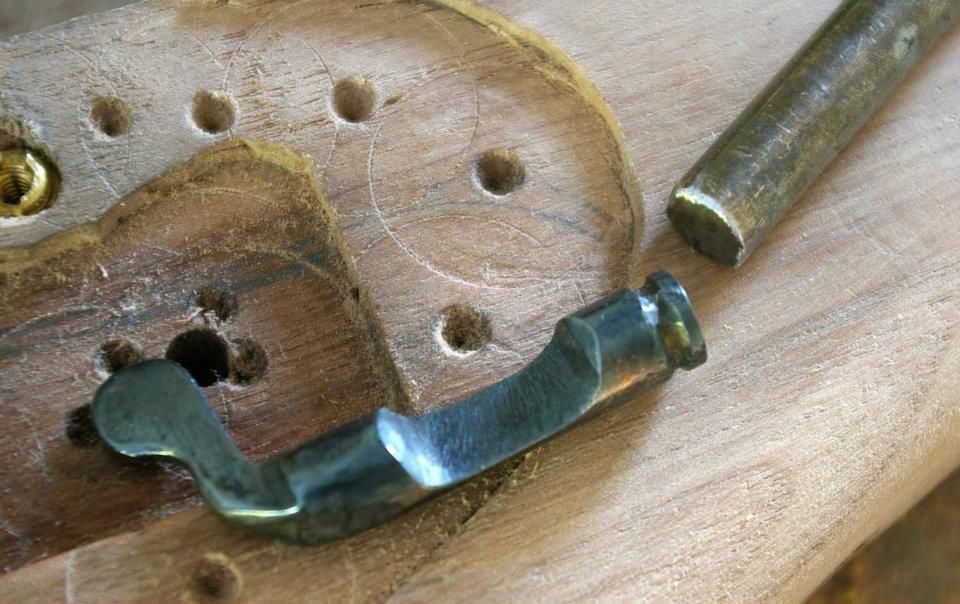

    Safety pivots and jams the trigger 'cam style' works well.
    First crossbow 39

    First crossbow 40

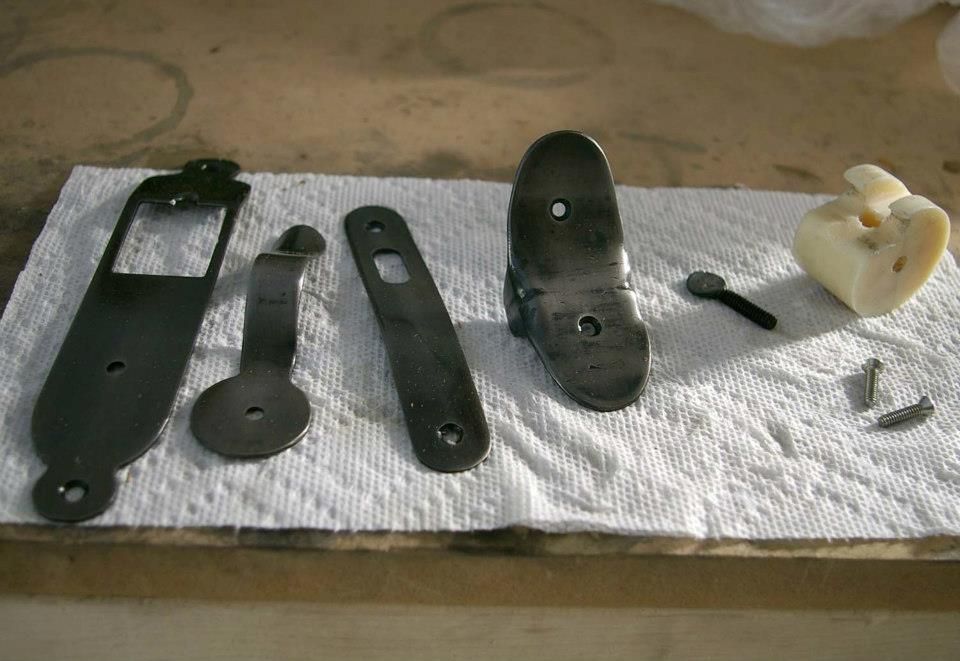

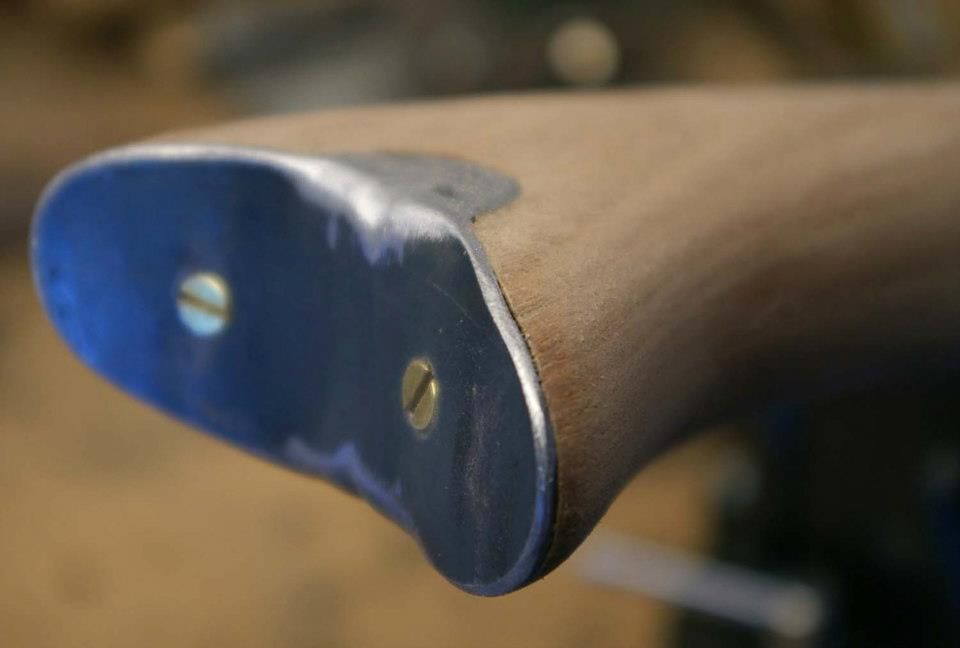

    Various bits after blueing:
    Left to right, top plate, bolt retainer, trigger plate, butt plate, ABS nut.
    First crossbow 43

    First crossbow 42

    I fashioned the stock in pine first as a test and then in walnut.
