    What I have done last week...

    avatar
    Rizzar
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?

    Posts : 194
    Join date : 2012-08-11
    Location : Germany

    What I have done last week... Empty What I have done last week...

    Post by Rizzar Sun Jul 21, 2013 8:02 am

    Hey Guys!

    This is what I have produced the last couple of days.

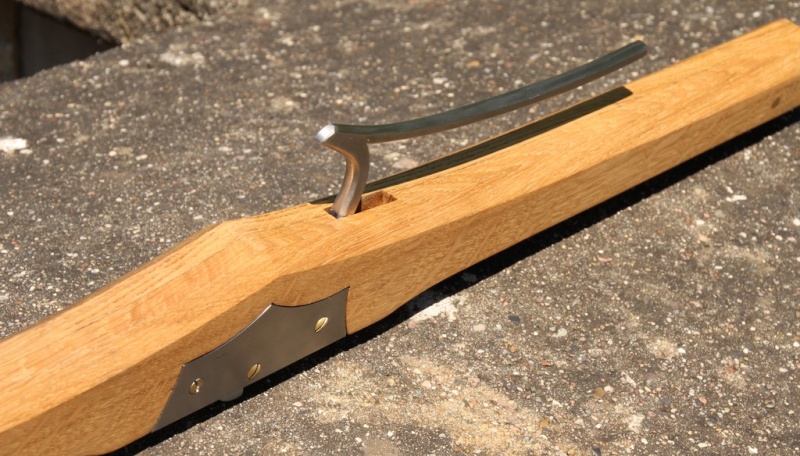

    Tiller of two oak planks, nut of polyamide with reinforced trigger-rest, selfmade prod (my lightest I finally got rid of) ~140lbf at 12inch of draw.
    Thread of hemp covered with bee´s wax, string 40 strands bcy 55, sideplates, trigger and stirrup made of mild steel, bolt clamp is copper, some brass here and there.


    Design oriented on spanish style but not forced to any known regulations.


    Hope you like the pictures:
    What I have done last week... 110



    What I have done last week... 210



    What I have done last week... 310



    What I have done last week... 410



    What I have done last week... 5a10



    What I have done last week... 610

     Greetings, Rizzar
    avatar
    jeep
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!

    Posts : 379
    Join date : 2011-04-07

    What I have done last week... Empty Re: What I have done last week...

    Post by jeep Sun Jul 21, 2013 9:35 am

    Good and elegant work! Is it nice to shoot with it, fast flying bolt?
    Hotspur
    Hotspur
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?

    Posts : 150
    Join date : 2012-06-28
    Location : British Columbia, Canada

    What I have done last week... Empty Re: What I have done last week...

    Post by Hotspur Sun Jul 21, 2013 9:50 am

    Nice pleasing lines.  It looks like that middle brass screw goes into the nut?
    avatar
    Rizzar
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?

    Posts : 194
    Join date : 2012-08-11
    Location : Germany

    What I have done last week... Empty Re: What I have done last week...

    Post by Rizzar Sun Jul 21, 2013 11:04 am

    Thx

    The bolts I shot so far flew very fast, I think the lightweight nut gives its benefit into shot behavior.

    The middle brass screw holds an axle the nut is secured with. Normally I would say the nut runs on that axle, but in fact with this crossbow the nut is more running on its outside in the tiller.
    backgardenbowyer
    backgardenbowyer
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 27
    Join date : 2013-01-13
    Location : London

    What I have done last week... Empty Re: What I have done last week...

    Post by backgardenbowyer Sun Jul 21, 2013 12:40 pm

    Excellent work - I like the simplicity.  Did you make the steel rod yourself?
    avatar
    Rizzar
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?

    Posts : 194
    Join date : 2012-08-11
    Location : Germany

    What I have done last week... Empty Re: What I have done last week...

    Post by Rizzar Mon Jul 22, 2013 12:56 am

    I made everything myself except those little screws you can see.

    Making the prod was long and hard work with much theory involved.
    Special spring steel was cut and bent by myself and tempering for security reasons was done by specialists.

    Rizzar
    avatar
    jeep
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!

    Posts : 379
    Join date : 2011-04-07

    What I have done last week... Empty Re: What I have done last week...

    Post by jeep Mon Jul 22, 2013 1:33 am

    How do you shape the trigger lever ? In one piece or do you weld ? Do you use forge for this ?
    avatar
    Rizzar
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?

    Posts : 194
    Join date : 2012-08-11
    Location : Germany

    What I have done last week... Empty Re: What I have done last week...

    Post by Rizzar Mon Jul 22, 2013 1:57 am

    The trigger was cut out in L-form from flat steel, the head rough grinded, drilled and then bent in a propane forge.


    I made the "knee" by cutting into the metal and bending a sharp edge in opposite direction.
    Fire welding, though I tried it, did not work out because my propane forge for bigger things doesn´t get hot enough so I had to do some arc welding to make a proper fit (hard-soldering would have worked out, too).


    After all, I could have done it completely by forging out of a straight rod since I had to correct it a couple of times when fitting it into the tiller.

    Rizzar
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!

    Posts : 581
    Join date : 2010-02-25
    Age : 59
    Location : sellersville,pa.

    What I have done last week... Empty Re: What I have done last week...

    Post by Todd the archer Mon Jul 22, 2013 2:10 am

    Great job!

    Todd
    ZigiMan
    ZigiMan
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.

    Posts : 79
    Join date : 2012-12-07
    Location : Tel-Aviv, Israel

    What I have done last week... Empty Re: What I have done last week...

    Post by ZigiMan Thu Jul 25, 2013 8:48 am

    Great work Rizzar!
    avatar
    archaic.archer
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 5
    Join date : 2013-07-30

    What I have done last week... Empty Re: What I have done last week...

    Post by archaic.archer Fri Aug 09, 2013 1:36 pm

    That looks awesome, very nice.   Thanks for sharing.
