    My newest lock now with more pictures

    avatar
    phuphuphnik
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 151
    Join date : 2013-12-02
    Location : The wastes West of Chicago

    My newest lock now with more pictures Empty My newest lock now with more pictures

    Post by phuphuphnik Fri Jan 22, 2016 4:11 am

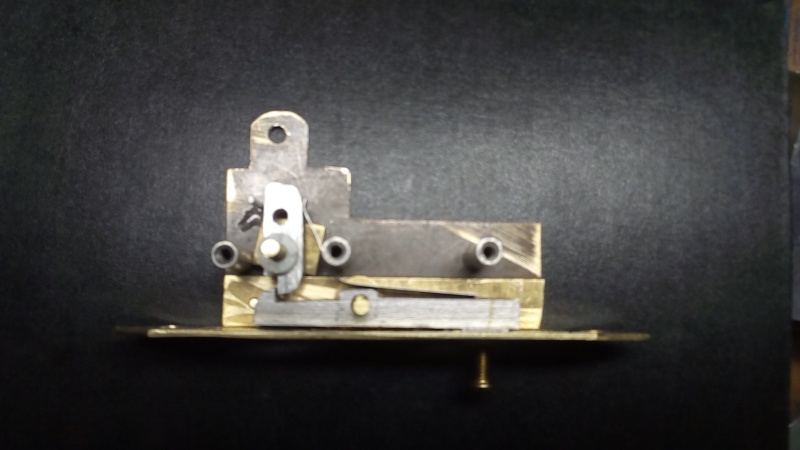

    It is a 2 stage with a roller. Short lever, could even be a button push. I tested it to about 160#, and it had a reasonable trigger pull. A lever added to the short lever will lessen it further. There are 2 safety options, one is a screw on the end of the lever, which hits the spacer just above it., another is a block on the other end of the lever preventing it from moving down.
    I was thinking of offering 80% machined kits, the lever, sear, and 2 side plates. Slightly different design, and all steel.
    I'll get better images in a while. I wanted to get this up before I forgot. The image shown is the first prototype. coming soon is the production prototype.

    My newest lock now with more pictures Img_2010


    Last edited by phuphuphnik on Sat Jan 23, 2016 11:30 pm; edited 1 time in total
    avatar
    phuphuphnik
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 151
    Join date : 2013-12-02
    Location : The wastes West of Chicago

    My newest lock now with more pictures Empty Re: My newest lock now with more pictures

    Post by phuphuphnik Sat Jan 23, 2016 11:30 pm

    All steel production prototype. Uses nylon spacers instead of metal blocks. Also has tapped tabs for mounting a trigger plate. This does not yet have the tapped hole on the lever for the safety screw. I'm looking for a very coarse tap so it only takes 1/2 or 1/4 turn to activate the safety.

    My newest lock now with more pictures Img_2011

    My newest lock now with more pictures Img_2012

    My newest lock now with more pictures Img_2013

    My newest lock now with more pictures Img_2014
