    Crossbow Press Mk. 2

    Basilisk120
    Basilisk120
    Moderator
    Moderator

    Posts : 548
    Join date : 2010-03-01
    Age : 41
    Location : Arizona

    Crossbow Press Mk. 2   Empty Crossbow Press Mk. 2

    Post by Basilisk120 on Tue Jun 07, 2011 12:35 pm

    So due to needing to re-string a crossbow I made a bow press. Figured I would show off what I made with some critiques to let others know what I thougth works and what needed an upgrade. And I should add it did work to get the bow strung.

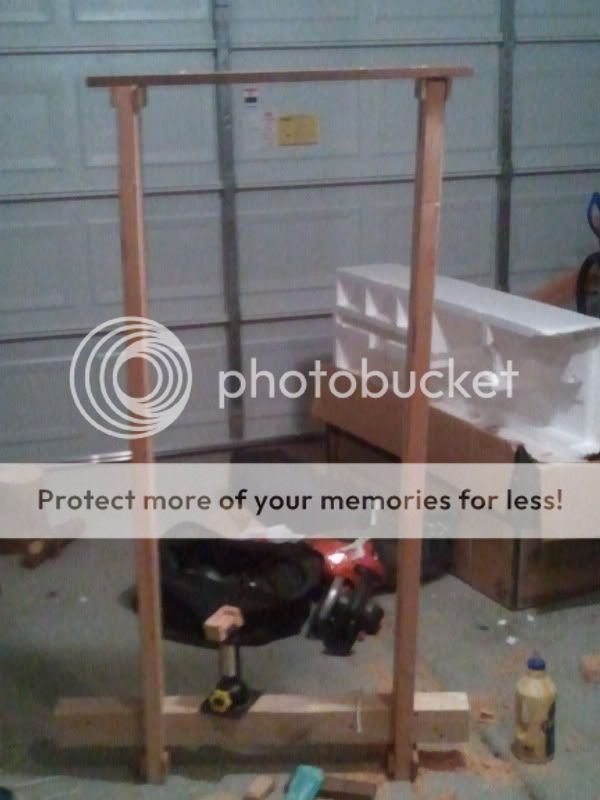

    Crossbow Press Mk. 2   2011-06-06213014
    BOM:
    10' cheap 2x6 cut in half for the sides
    8' 2x4 glued joined to make a 4x4 base bar
    random piece of wood for the top
    bunch of screw
    Wood glue
    small posts for the top piece of wood.

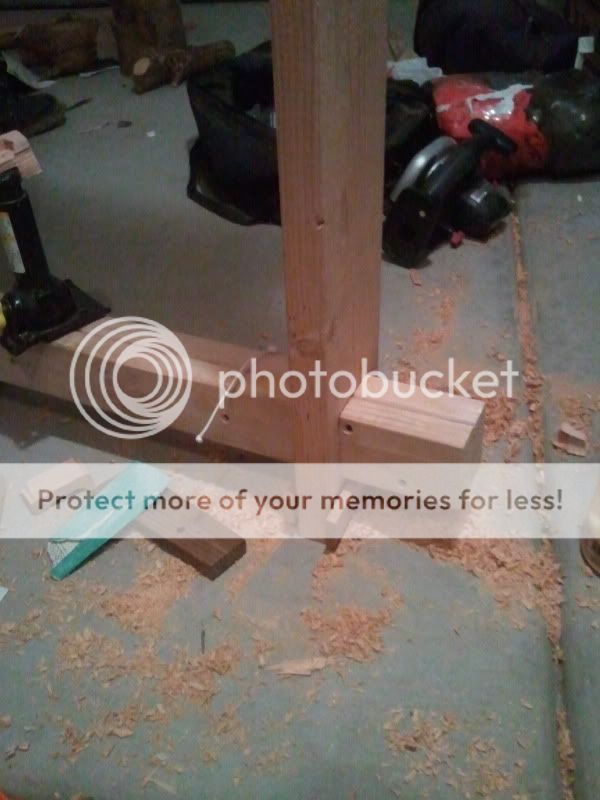

    Crossbow Press Mk. 2   2011-06-06213043
    Base side detail
    The sides can slide in and out to adjust the width.
    The top is held on with posts so it is also adjustable.
    adjust the width so so the crossbow sting just sticks out both sides. That will make the correct width.

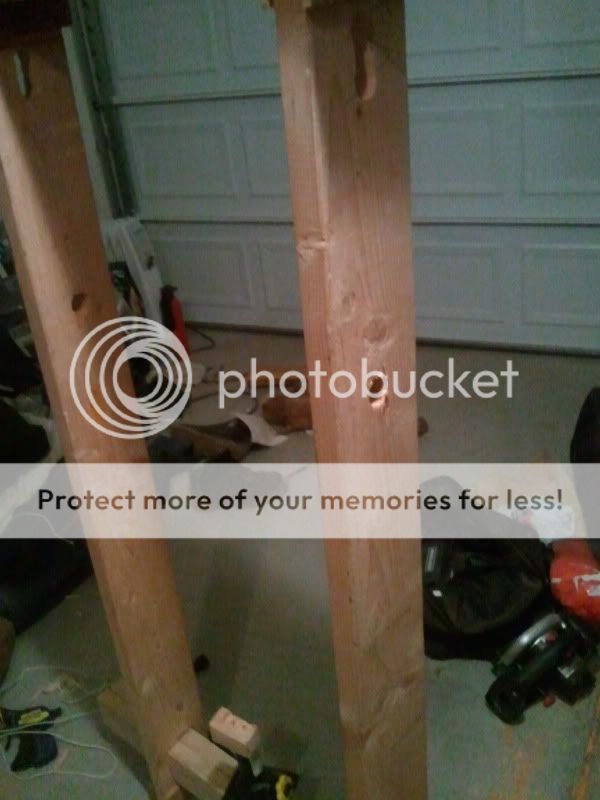

    Crossbow Press Mk. 2   2011-06-06213118
    Side Detail
    I originally wanted a slot to slide the prod into but my first placement was way to high so I had to lower it and just left it as a hole. It works, I will make it more of slot at some point in the future. Mk 1 was a little two short amoung other issues so I of course over compensated with the next design but total height actully works but the prod slots needed to be re-located.

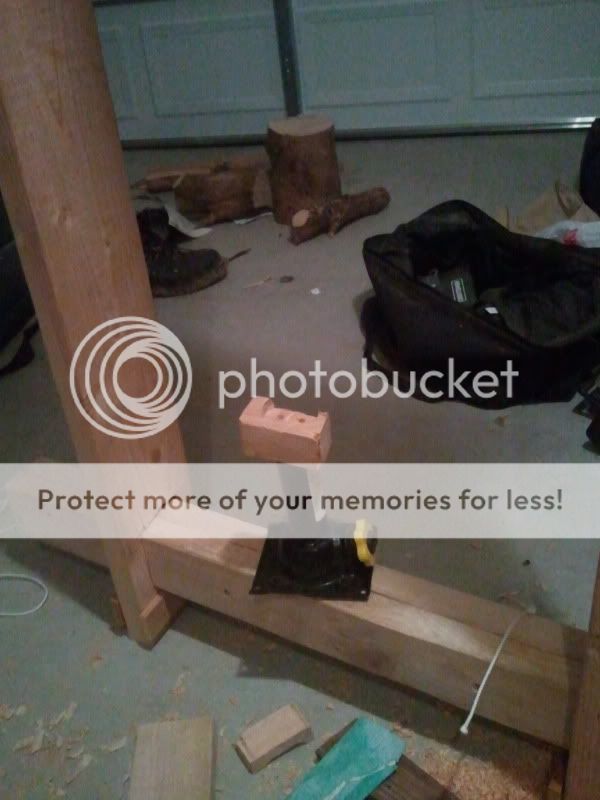

    Crossbow Press Mk. 2   2011-06-06213104
    Screw jack with mounting jig.
    I used a bottle jack from my truck. I had make an adapter that that fit over the jack end and the crossbow end to keep it togather. The adapter in the picture is after it broke when I dropped it. It worked great when used but couldn't take being dropped. If it wasn't a borrowed jack I would have bolted it down. Saftey issue: Don't stand in line with the crossbow and jack when under load. I had the jack kick out once before the I made the adapter and that was a bit scary.

    So upgrades: Use oak or hard wood for the sides. The cheap 2x6 barely works.
    Gettign a purpose use jack and bolt it in place.
    Add a base of the sides so it is less wobbly.

    Otherwise this worked and cost me less than $10 to make. That was becuase I had the glue and the screws and some spare wood.


    Last edited by Basilisk120 on Tue Jun 07, 2011 3:43 pm; edited 2 times in total



    Something Something Dark Side
    jake-owa
    jake-owa
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?

    Posts : 145
    Join date : 2010-11-06

    Crossbow Press Mk. 2   Empty Re: Crossbow Press Mk. 2

    Post by jake-owa on Tue Jun 07, 2011 1:04 pm

    Wouldn't this be more of a bow press than a string jig? When I think of a stringing jig I imagine the thing you use to make the actual string.

    Very effective solution though, I like it.
    Basilisk120
    Basilisk120
    Moderator
    Moderator

    Posts : 548
    Join date : 2010-03-01
    Age : 41
    Location : Arizona

    Crossbow Press Mk. 2   Empty Re: Crossbow Press Mk. 2

    Post by Basilisk120 on Tue Jun 07, 2011 3:41 pm

    You make a good point Jake. Embarassed Great I now have to re-title the thread. Crying or Very sad But now at least your comment won't make as much sense Razz Very Happy



    Something Something Dark Side
    mac
    mac
    Master Weaponsmith
    Master Weaponsmith

    Posts : 560
    Join date : 2010-12-23
    Location : Near Philly USA

    Crossbow Press Mk. 2   Empty Re: Crossbow Press Mk. 2

    Post by mac on Wed Jun 08, 2011 7:42 am

    Basilisk,

    I am having trouble understanding how this machine works. Could you post a pic of it in use?

    Thanks!
    Mac
    Basilisk120
    Basilisk120
    Moderator
    Moderator

    Posts : 548
    Join date : 2010-03-01
    Age : 41
    Location : Arizona

    Crossbow Press Mk. 2   Empty Re: Crossbow Press Mk. 2

    Post by Basilisk120 on Wed Jun 08, 2011 9:02 pm

    Here is sort an action shot. the sides can be move in or out depending on the crossbow.

    Crossbow Press Mk. 2   2011-06-08184203



    Something Something Dark Side
    mac
    mac
    Master Weaponsmith
    Master Weaponsmith

    Posts : 560
    Join date : 2010-12-23
    Location : Near Philly USA

    Crossbow Press Mk. 2   Empty Re: Crossbow Press Mk. 2

    Post by mac on Wed Jun 08, 2011 10:04 pm

    OK, I get it now. It's obvious, now that I see the pic.
    Thanks!

    Mac
    avatar
    8fingers
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?

    Posts : 199
    Join date : 2011-04-06
    Location : Chetwynd, BC, Canada

    Crossbow Press Mk. 2   Empty Re: Crossbow Press Mk. 2

    Post by 8fingers on Sat Dec 15, 2012 11:57 am

    Just saw a pipe bending jig that looked like a nice core to build a bow press. I will take a second look tomorrow but the one I saw looked like all I would need to do is change out the dished rollers for flat ones.
    Price was just over $100 but what is time worth if you will be doing this regularly.
    septua
    septua
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.

    Posts : 74
    Join date : 2012-12-02
    Location : Ohio

    Crossbow Press Mk. 2   Empty Re: Crossbow Press Mk. 2

    Post by septua on Sat Dec 15, 2012 2:25 pm

    This press just clamps to the bench top but leaves about 6
    inches from tiller to floor It has a 2 to 1 pulley and a marine cam cleat to
    keep the draw as desired. It is drawn down by pushing with my foot in the rope
    loop. I like the 10 second from bow on to string off and vice versa. The
    release is accomplished by yanking the rope from the spring loaded double cleat.
    This setup only works if the tiller has some type of frontal ring.


    septua
    Crossbow Press Mk. 2   Press_11





    Crossbow Press Mk. 2   Innerc10
