    Hello all - see my best slingshot crossbows

    avatar
    JoergS
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 71
    Join date : 2011-09-07

    Hello all - see my best slingshot crossbows Empty Hello all - see my best slingshot crossbows

    Post by JoergS Tue Sep 13, 2011 1:37 am

    Hello,

    let me introduce myself first, I am Jörg Sprave, 46 years of age, a German. I run "The Slingshot Channel" on youtube, a hobby I am very proud off. Now that Ivo (whom I met before on another great forum - Hi Ivo!) has officially declared rubber to be an established energy "source" for crossbows, it seems it is time for me to start posting here.

    I have designed and built many slingshot crossbows in the last few years, but here are two designs that work really well.

    First, my "medieval style" crossbow - with draw weights of up to 200 lbs, a mighty strong ball shooting weapon.

    Hello all - see my best slingshot crossbows Scope1

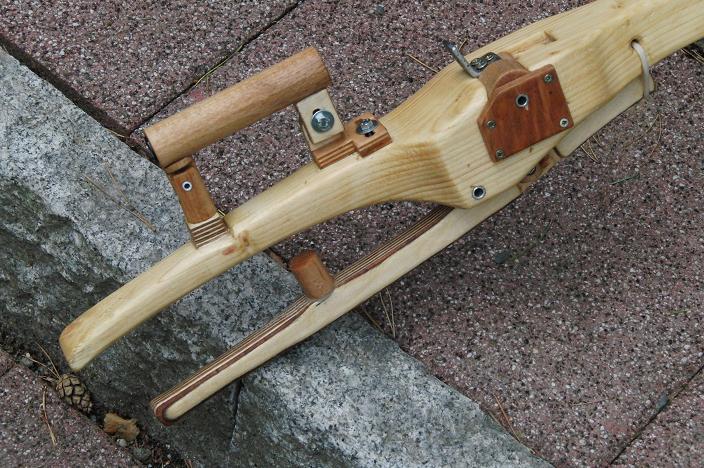

    The lock is a modified "rolling nut" that can accomodate a 19mm (.75") lead ball, large musket ammo in fact.

    Hello all - see my best slingshot crossbows Scope2

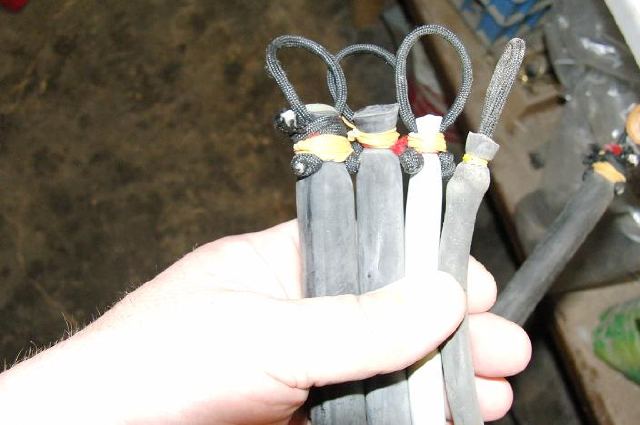

    I use spear gun rubber for it, quickly interchangeable.

    Hello all - see my best slingshot crossbows 20mmbands

    Here are two videos about it:

    With 100 lbs bands, no scope:



    200 lbs, at last:



    The other model is not fully finished, but well on its way.

    Hello all - see my best slingshot crossbows Image-9929_4E6DB62D

    Slingshot crossbows are fascinating weapons. Powerful enough to be lethal (>60 ft-lbs), easy to make and very accurate.

    However, all of my power sling-x-bows were pretty long. That is, until now!

    I built a bullpup crossbow, with rollers that extend the draw. This has a stirrup and can therefore be cocked with both hands, allowing very strong bands.

    Here you see it in comparison with an earlier model of mine:

    Hello all - see my best slingshot crossbows Image-8685_4E6DB6DE

    In this video



    you see it shooting triple TB gold bands per side, the maximum I can draw on a conventional slingshot. But the photos already show it with six layers per side, it shoots a 20 mm steel ball with more than 230 fps - well in the 60 ft-lbs realm commonly stated as "lethal".

    I will do some more sanding, add a front handle and a scope, plus a nice paint job.

    Will make a how-to video (tutorial) for next week! Stay tuned.

    Jörg
    Basilisk120
    Basilisk120
    Moderator
    Moderator


    Posts : 548
    Join date : 2010-03-01
    Age : 43
    Location : Arizona

    Hello all - see my best slingshot crossbows Empty Re: Hello all - see my best slingshot crossbows

    Post by Basilisk120 Tue Sep 13, 2011 8:11 am

    Hey Jorg: (crazy American computer doesn't have the umlaut key).

    Welcome to the site. I have been able to look at a couple of your videos and I have to say. Great Work. You ahve inspired me to try my hand at some crazy slingshots.



    Keep up the good work, and the great videos Very Happy



    Something Something Dark Side
    avatar
    Casey
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows


    Posts : 2
    Join date : 2011-09-13

    Hello all - see my best slingshot crossbows Empty Umlaut challenged myself.

    Post by Casey Tue Sep 13, 2011 7:42 pm

    I followed Jörg over here from the Slingshot Channel. I personally get around the lack of an umlaut key by cutting and pasting the ö.
    Phil Abrahams
    Phil Abrahams
    Talisman Crossbows


    Posts : 75
    Join date : 2011-07-16

    Hello all - see my best slingshot crossbows Empty Re: Hello all - see my best slingshot crossbows

    Post by Phil Abrahams Wed Sep 14, 2011 1:44 pm

    Welcome aboard Jorg,I love all your slingshot's as you really have taken these weapon's to another level.Simply amazing with brilliant video footage.I love the gatlin slingshot and all the other's i have seen and your traditional hand held slingshot's are so neat and beautifully crafted as they are powerful.Very inspiring stuff i just love it,that bullpup version is AWESOME and i cannot wait to see her party with the uprated band's,very cool interesting weaponry there with brilliant trigger mechanism design's with sound woodwork,wow you are one bad boy,so glad you are on here.
    kiwijim
    kiwijim
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 62
    Join date : 2009-12-10

    Hello all - see my best slingshot crossbows Empty Re: Hello all - see my best slingshot crossbows

    Post by kiwijim Thu Sep 15, 2011 4:16 am

    Jorg, excellent to have you here! I have watched your clips on you tube for a while now. I just loved watching you shred up the leg of New Zealand lamb. I look foward to when you post a super accurate "stone bow" delivering 120 footpounds plus.

    Again, nice work!

    James
    Phil Abrahams
    Phil Abrahams
    Talisman Crossbows


    Posts : 75
    Join date : 2011-07-16

    Hello all - see my best slingshot crossbows Empty Re: Hello all - see my best slingshot crossbows

    Post by Phil Abrahams Thu Sep 15, 2011 10:43 am

    Jorg to me you are quite simply THE SLINGSHOT GOD period,no kidding.I want to make one myself now and i think myself that if you brought out a commercially viable version then there would be a fair few people out there who would love one as they are brilliant fun and shoot very cost effective ammo.Just immagine that BULLPUP VERSION all finished in black or camo now that would be on my Christmas list right at the very top you could even incorporate a winch for ease of very high power use on it and it could shoot bolt's as well,hope i got you thinking on this Jorg as no one else out there has offered a slingshot of this calibre.I also love the German HW 80 air rifle it is so well engineered and designed to me it is the best. I have had these in 177 cal through the sound barrier by tuning it and getting a monster high quality spring made.It sent a pellet clean through a lorry tyre both side's and accurate too the kinetic energy was 29 ft lbs.I now have a .22 and that went up to 32 ft lbs with stroke modification and transfer port mod's and making the piston heavier with two spring's ie one inside the mainspring.
    Ukkola
    Ukkola
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows


    Posts : 5
    Join date : 2011-09-09
    Location : Michigan

    Hello all - see my best slingshot crossbows Empty Re: Hello all - see my best slingshot crossbows

    Post by Ukkola Thu Sep 15, 2011 11:20 am

    All I can say is two words... DA-amn!
    Jorg you da' man!
    Ivo
    Ivo
    Admin
    Admin


    Posts : 1041
    Join date : 2009-11-25
    Age : 33
    Location : NJ, USA

    Hello all - see my best slingshot crossbows Empty Re: Hello all - see my best slingshot crossbows

    Post by Ivo Thu Sep 15, 2011 12:15 pm

    Jorg to me you are quite simply THE SLINGSHOT GOD

    "It's not the Gods who bake the pots" and in that lies my complement. Smile

    The few issues shown in the video closely relate to what I asked Joerg on another forum. The modified frame I was discussing with jeep. Since recently I've learned that the band can't be pre-tensioned like the limbs of a bow, it's now obvious that it's very easy for the band/string to slip off the rollers at the end of the power stroke. I believe you've already made your modifications to solve that problem.

    The next issue is the cheek rest and scope mount...and the biggest two issues with those is you didn't give yourself much room for the two and the position of the forks would make it hard to draw with most side mounted solutions. However, since you are calling it an "assault" sling-bow, I think it's a must to figure this out.
    There is room for an "over the track" rail (most video games have at least one bullpup rifle with front mounted scope ) that will be simple to build and solid to boot...while still allowing you to draw with both hands and not dealing with any swing arms etc.

    Hello all - see my best slingshot crossbows Slingb10
    (Yeh, that's a piece of foam pipe insulation as a cheek rest. Razz )

    Hello all - see my best slingshot crossbows Slingb11

    Looking forward to the updates...I know you don't really copy any design, so will be interesting to see your take on it. Good Luck!

    Ivo


    Last edited by Ivo on Thu Sep 15, 2011 3:44 pm; edited 2 times in total



    Hello all - see my best slingshot crossbows Untitled
    * *
    ~ "I don't have any special talents. I'm only passionately curious."
    * * *
    ~ "All Genius is Simple"
    * *
    Phil Abrahams
    Phil Abrahams
    Talisman Crossbows


    Posts : 75
    Join date : 2011-07-16

    Hello all - see my best slingshot crossbows Empty Re: Hello all - see my best slingshot crossbows

    Post by Phil Abrahams Thu Sep 15, 2011 2:31 pm

    Now that is very nice indeed.Ivo that thing look's like nothing else.Love that design and what a compact weapon it is along with being powerful and accurate.
    avatar
    JoergS
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 71
    Join date : 2011-09-07

    Hello all - see my best slingshot crossbows Empty Re: Hello all - see my best slingshot crossbows

    Post by JoergS Thu Sep 15, 2011 10:50 pm

    Ivo, great pics, and I am sure your construction works. But there are two issues to consider:

    1. The bridge makes it a little harder to draw out the bands.

    2. The bridge needs to be higher if you employ my simple "push up" trigger, as the ball flies slightly upwards and may touch the underside of the bridge.

    I will try a folddown (swingarm) scope mount instead. That has some accuracy issues due to the unavoidable play (the end position varies slightly), but for the effective range of the weapon, I do not think this matters much.
