    Etched stirrup- Buckskin for prod

    Hotspur
    Hotspur
    Hotspur
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 150
    Join date : 2012-06-28
    Location : British Columbia, Canada
    • Post n°1

    Etched stirrup- Buckskin for prod Empty Etched stirrup- Buckskin for prod

    Post by Hotspur Mon Jun 03, 2013 7:15 pm

    Just putting some final touches on the crossbow:

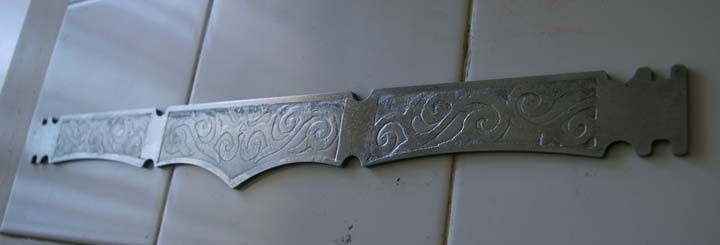

    I etched a design into the stirrup I got from Alchem a year ago -


    Etched stirrup- Buckskin for prod StirrupEtched_zps28599d20

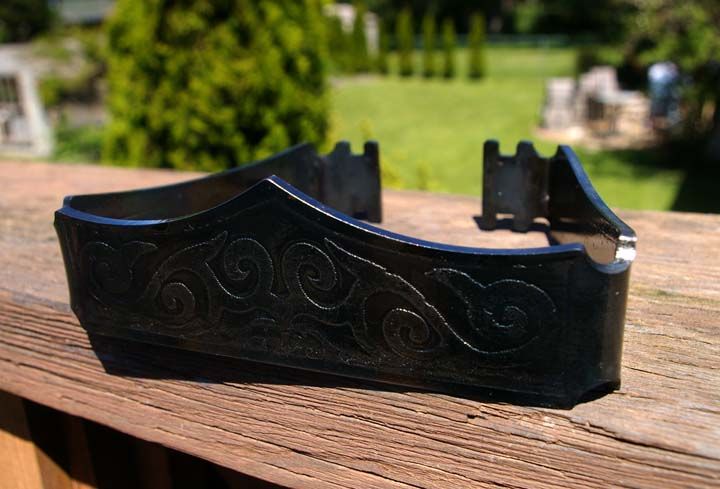

    Etched stirrup- Buckskin for prod StirrupBlued_zpsb6de6fe3

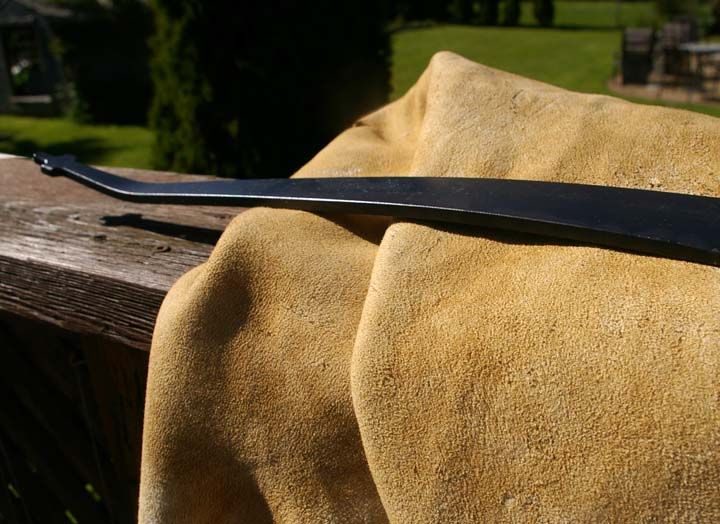

    Also, I finally tanned last season’s deer hide and plan to wrap the centre of the new slowbow 250lb prod with buckskin (when I find my roll of sinew)...

    Etched stirrup- Buckskin for prod BuckSkinProd_zps59ce9bfb
    Just need to make a few complimentary bolts now!
    • Back to top
    African Archer
    African Archer
    African Archer
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 109
    Join date : 2012-07-25
    Age : 43
    Location : durban south africa
    • Post n°2

    Etched stirrup- Buckskin for prod Empty Re: Etched stirrup- Buckskin for prod

    Post by African Archer Tue Jun 04, 2013 12:51 am

    Hotspur that stirrup is awesome, what chemicals did you use to etch it, my side plates on my latest are etched, but couldn get it deep enough to be worth the effort.
    • Back to top
    Hotspur
    Hotspur
    Hotspur
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 150
    Join date : 2012-06-28
    Location : British Columbia, Canada
    • Post n°3

    Etched stirrup- Buckskin for prod Empty Re: Etched stirrup- Buckskin for prod

    Post by Hotspur Tue Jun 04, 2013 1:21 am

    Hi A.A.

    I use ferric sulphate (the stuff you get at the garden store. They sometimes call it iron sulphate) as an electrolyte. Just mix some up in a saturated water solution. Then a non-standard use of a portable drill charger; anode(+) is the thing you're etching, cathode (-) is an iron spike or something. The drill charger runs at 14 volts 1.7 amps maybe. Give it 20 minutes to an hour or so depending on the size.

    I think a car battery charger with a manual settings would work better with more current but my car charger has some safety circuitry thing that cuts it out.

    Getting the resist right is my challenge...

    • Back to top
    Hotspur
    Hotspur
    Hotspur
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 150
    Join date : 2012-06-28
    Location : British Columbia, Canada
    • Post n°4

    Etched stirrup- Buckskin for prod Empty Re: Etched stirrup- Buckskin for prod

    Post by Hotspur Tue Jun 04, 2013 1:31 am

    I should mention an important step is to mask off all parts of the thing you don't want etched, like the back. I use masking tape, but there is probably a better way like paint or something.

    I do a fiddly laser toner transfer process for the design that involves stealing the wife's Vogue magazine for the glossy paper...
    • Back to top
    African Archer
    African Archer
    African Archer
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 109
    Join date : 2012-07-25
    Age : 43
    Location : durban south africa
    • Post n°5

    Etched stirrup- Buckskin for prod Empty Re: Etched stirrup- Buckskin for prod

    Post by African Archer Tue Jun 04, 2013 1:39 am

    I had vinyl stencils cut, worked great and used a battery charge, the wet bit was saturated salt water with a bit of muric acid, it worked but stopped at a certain level and that was after 2 hours , going to try your method an see what happens , my method worked great on brass not mild steel
    • Back to top
    Hotspur
    Hotspur
    Hotspur
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 150
    Join date : 2012-06-28
    Location : British Columbia, Canada
    • Post n°6

    Etched stirrup- Buckskin for prod Empty Re: Etched stirrup- Buckskin for prod

    Post by Hotspur Tue Jun 04, 2013 10:24 am

    AA,
    I got most of my ideas from this web page - http://mordent.com/etch-howto/

    The guy seemed to know what he was doing. I think you want iron sulphate for steel.
    • Back to top
    Hotspur
    Hotspur
    Hotspur
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 150
    Join date : 2012-06-28
    Location : British Columbia, Canada
    • Post n°7

    Etched stirrup- Buckskin for prod Empty Re: Etched stirrup- Buckskin for prod

    Post by Hotspur Tue Jun 18, 2013 4:19 pm

    The stirrup installed along with the new prod from slow bow.

    Etched stirrup- Buckskin for prod Front_zpsee476c3e

    Slowbow's string gives it a brace of only 2.5".  Little low?

    Etched stirrup- Buckskin for prod Irons_zps86d69fa9
