    Goats Foot Lever

    avatar
    Rizzar
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?

    Posts : 194
    Join date : 2012-08-11
    Location : Germany

    Goats Foot Lever Empty Goats Foot Lever

    Post by Rizzar on Tue Jul 30, 2013 1:24 pm

    I spent the last days building a gafa for my bone covered crossbow since I was not able to span it very conveniently due to the lack of a stirrup and pulling 200lbswith the arms is possible, but not for a whole day.

    I soldered, welded and riveted a bit, the parts were mostly cut out, grinded but I did some forging as well to provide even bendings.

    The main part is blackned with burned bees wax, although in the end I would have been happier with blanc finish.

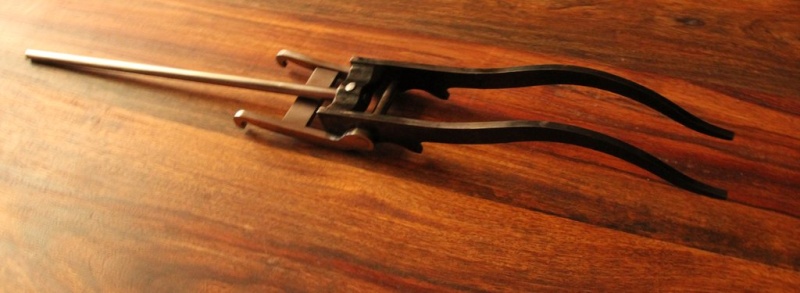

    Goats Foot Lever 111



    Goats Foot Lever 211



    Goats Foot Lever 311

     After all, I underestimated the efford a bit, but it works very well and is very comfortable to use.

    Greetings Rizzar
    avatar
    chaz
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!

    Posts : 306
    Join date : 2012-04-13
    Age : 71
    Location : Texas

    Goats Foot Lever Empty Re: Goats Foot Lever

    Post by chaz on Tue Jul 30, 2013 9:18 pm

    Rizzar,

      VERY NICE INDEED !

    Chaz
    ZigiMan
    ZigiMan
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.

    Posts : 79
    Join date : 2012-12-07
    Location : Tel-Aviv, Israel

    Goats Foot Lever Empty Re: Goats Foot Lever

    Post by ZigiMan on Wed Jul 31, 2013 7:22 am

    Really professional work! Look like it came out of a factory rather then handmade...
    avatar
    msalazar2310
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 14
    Join date : 2015-04-19
    Age : 74
    Location : Mexico

    Goats Foot Lever Empty Re: Goats Foot Lever

    Post by msalazar2310 on Tue Apr 17, 2018 1:11 pm

    I am trying to make my goats foot, are there detailed plans in order to avoid possible errors?
    Geezer
    Geezer
    Master Crossbowyer
    Master Crossbowyer

    Posts : 1178
    Join date : 2010-01-12
    Age : 72
    Location : Austin, Texas, USA

    Goats Foot Lever Empty Re: Goats Foot Lever

    Post by Geezer on Wed Apr 18, 2018 12:42 pm

    The pattern for a gafa in Book of the Crossbow (Payne-Gallwey) will work just fine, but you ought to leave out the extra brace between the legs of the long fork.  They won't make the lever any stronger, but may bottom-out at the end of your spanning stroke.  The pic above has eliminated that bit and it should work fine.  Geezer.
    avatar
    Arcuballista
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows

    Posts : 15
    Join date : 2011-08-16

    Goats Foot Lever Empty Re: Goats Foot Lever

    Post by Arcuballista on Wed Oct 23, 2019 12:47 am

    Looks very good! Do you have to harden the steel?
