    how made homemade (reverse) crossbow ?

    ali.j
    ali.j
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 76
    Join date : 2013-10-30
    Age : 27
    Location : iran- shiraz

    how made homemade (reverse) crossbow ? Empty how made homemade (reverse) crossbow ?

    Post by ali.j Wed Nov 06, 2013 7:54 am

    ...


    Last edited by ali.j on Thu May 21, 2015 2:41 am; edited 3 times in total
    Geezer
    Geezer
    Master Crossbowyer
    Master Crossbowyer


    Posts : 1194
    Join date : 2010-01-12
    Age : 73
    Location : Austin, Texas, USA

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by Geezer Thu Nov 07, 2013 8:27 am

    Ali: The weight of your cams... the pulleys on the outer ends of the bowstave/prod, is Very Critical.  You want any weight out there to be as low as possible. Given availability of suitable materials, you could probably cut your cam-weight in half, which would substantially increase your performance. Geezer
    ali.j
    ali.j
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 76
    Join date : 2013-10-30
    Age : 27
    Location : iran- shiraz

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by ali.j Fri Nov 08, 2013 8:44 am

    ye mr geezer. Either way works well. and you can see today test Cool




     and crossboe power is 54 kg = 119 pound ( lb)

    and cams wight in 76 gram Very Happy

    Do you want to know how it's made? ( cams)
    Using a  4 metal washers and  one  bearings




    I prefer to make all lonely. Even archery arrows
    Leaves of palm tree...
    how made homemade (reverse) crossbow ? 07_13138384154565951
    how made homemade (reverse) crossbow ? 07_13138384154573672
    how made homemade (reverse) crossbow ? 07_13138384180193871
    how made homemade (reverse) crossbow ? 07_13138384180201152
    how made homemade (reverse) crossbow ? 07_1313838421188612
    how made homemade (reverse) crossbow ? 07_13138384211891093
    how made homemade (reverse) crossbow ? 07_13138384222456791

    how made homemade (reverse) crossbow ? 07_13138384222463732
    how made homemade (reverse) crossbow ? 07_13138384252743292
    how made homemade (reverse) crossbow ? 07_13138384262308851
    how made homemade (reverse) crossbow ? 07_13138384252736631
    how made homemade (reverse) crossbow ? 07_13138384262315212
    how made homemade (reverse) crossbow ? 07_13138384262320113



    my crossbow Until a week ago was ricrv but i czazy abou compound sistem so i chenge the crossbow to compound Cool

    Geezer
    Geezer
    Master Crossbowyer
    Master Crossbowyer


    Posts : 1194
    Join date : 2010-01-12
    Age : 73
    Location : Austin, Texas, USA

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by Geezer Fri Nov 08, 2013 9:13 am

    The video is good, and I appreciate your making things from locally available materials.
    The bolts that hold your cams in place are longer than they need to be.  Cut them off flush, and the lost weight will go directly into your bolts.  Higher velocity, flatter trajectory, harder hitting.
    Good luck.  Geezer
    ali.j
    ali.j
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 76
    Join date : 2013-10-30
    Age : 27
    Location : iran- shiraz

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by ali.j Tue Jan 14, 2014 3:22 am

    tanx mr Geezer this new video . change recrve to compund sistem



    avatar
    kenh
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 848
    Join date : 2012-08-03
    Age : 73
    Location : Living Aboard a Sailboat in Fort Myers, FL

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by kenh Tue Jan 14, 2014 6:19 am

    Nice work, Ali.  Geezer is right about making the cams as light as possible.  You may be able to find some nylon roller bearing such as those on some furniture.  Also make your cams usng only 2 washers, not 4.  As said above the extra energy will go into your bolts.
    avatar
    Hermit
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 245
    Join date : 2013-09-10

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by Hermit Thu Jan 30, 2014 11:21 am

    Nice work Ali,ingeneous idea for the trigger mechanism.
                                                  Hermit.
    avatar
    Rizzar
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 194
    Join date : 2012-08-11
    Location : Germany

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by Rizzar Sat Feb 01, 2014 8:08 am

    Hey Ali!

    I like your work though the colors are not my taste (not only the blanket).   Wink

    Especially the good idea with the trigger can ease work for many around here that are always searching for alternatives.


    But I do have concerns, too:
    To be honest what you have shown in the video when cutting out the limbs with a welding torch is one of the worst things you can to a leafspring in case you do not reharden and temper it properly.

    But, as I guess do not reach critical tension (low tip movement) on the limbs everything seems fine for your purpose.
    Just be sure to wear protection, keep a safety distance around and do not endanger someone when shooting.

    Greetings Rizzar
    ali.j
    ali.j
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 76
    Join date : 2013-10-30
    Age : 27
    Location : iran- shiraz

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by ali.j Tue Oct 07, 2014 6:40 pm

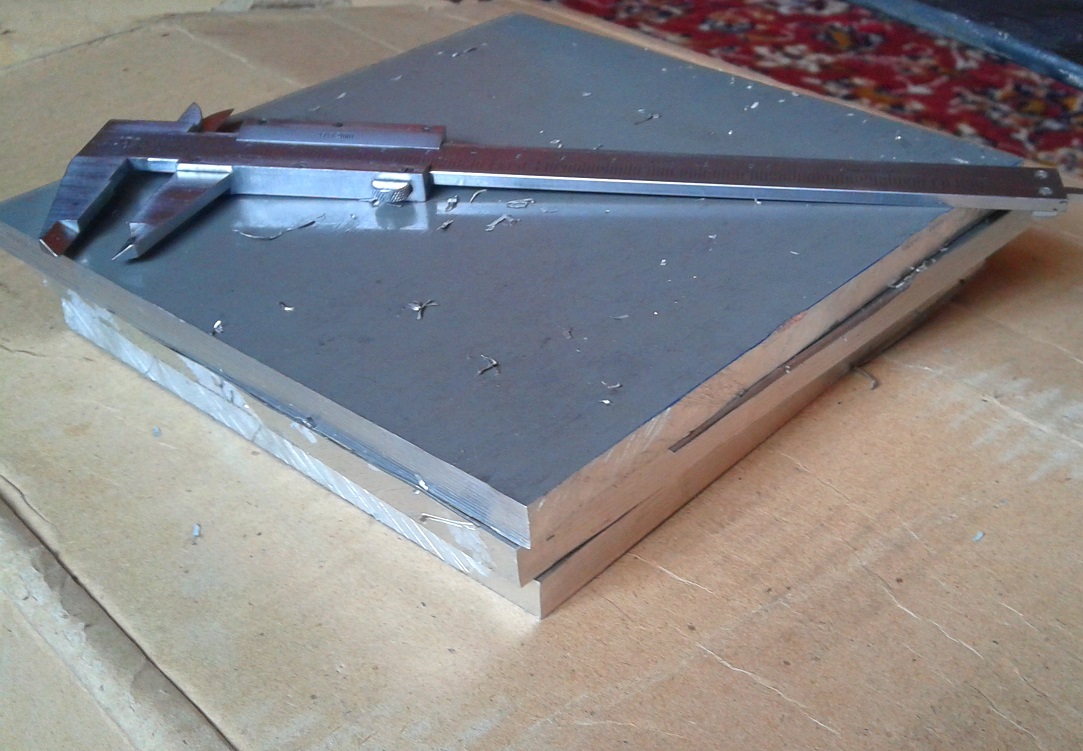

    my new proje. try to made a scorpyd rdt crossbow.

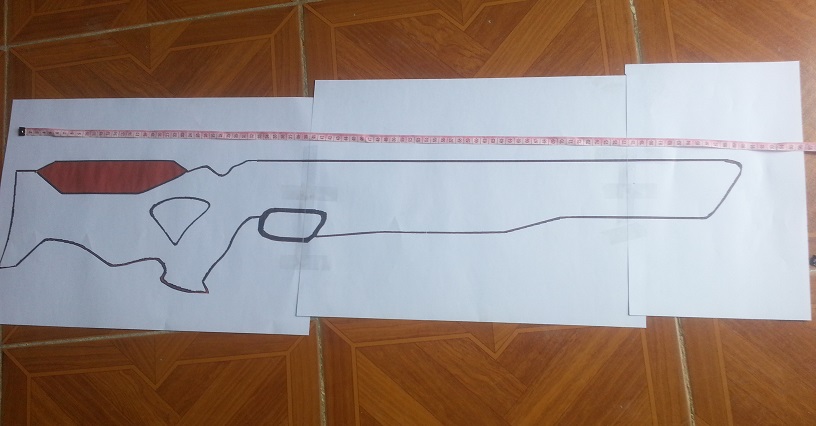

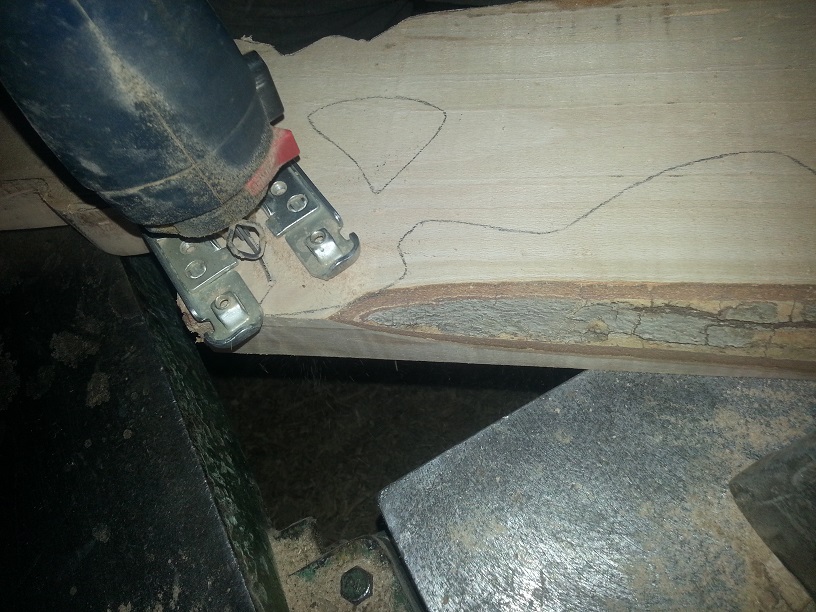

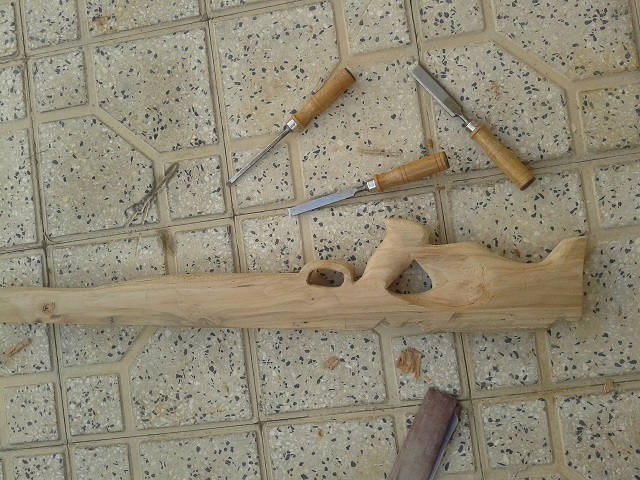

    firest sisine and made stock

    how made homemade (reverse) crossbow ? 0_1_

    how made homemade (reverse) crossbow ? 0_8_

    how made homemade (reverse) crossbow ? 0_10_

    how made homemade (reverse) crossbow ? 12_14140518403421453


    how made homemade (reverse) crossbow ? 0_17_


    how made homemade (reverse) crossbow ? 0_15_


    how made homemade (reverse) crossbow ? 16_14140553409963921


    how made homemade (reverse) crossbow ? 16_14140553431194972

    how made homemade (reverse) crossbow ? 16_14140553431194972


    how made homemade (reverse) crossbow ? 15_14140808969058171



    the compound limbs ( hard steel )

    how made homemade (reverse) crossbow ? 17_14140560934382532

    how made homemade (reverse) crossbow ? 24_14140622258831941


    how made homemade (reverse) crossbow ? 25_14140631396561432

    http://www.uploaddd.com/uploads/25_14140631452008111.jpg

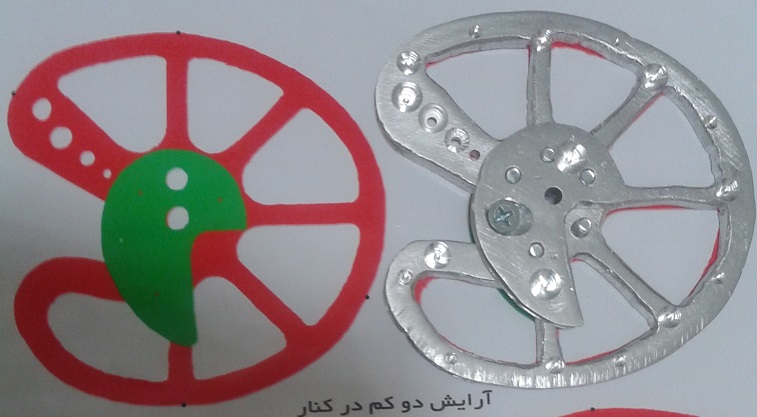

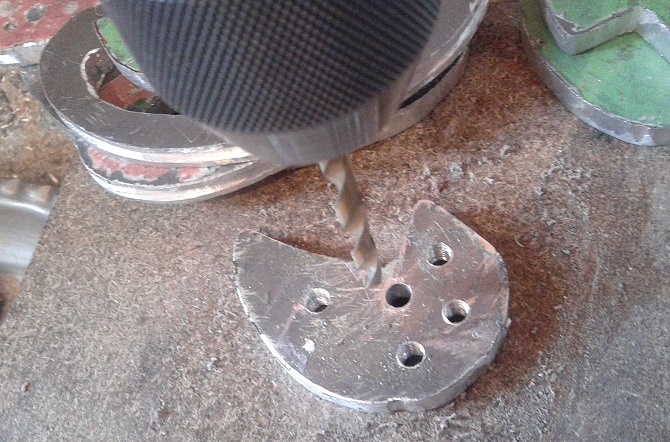

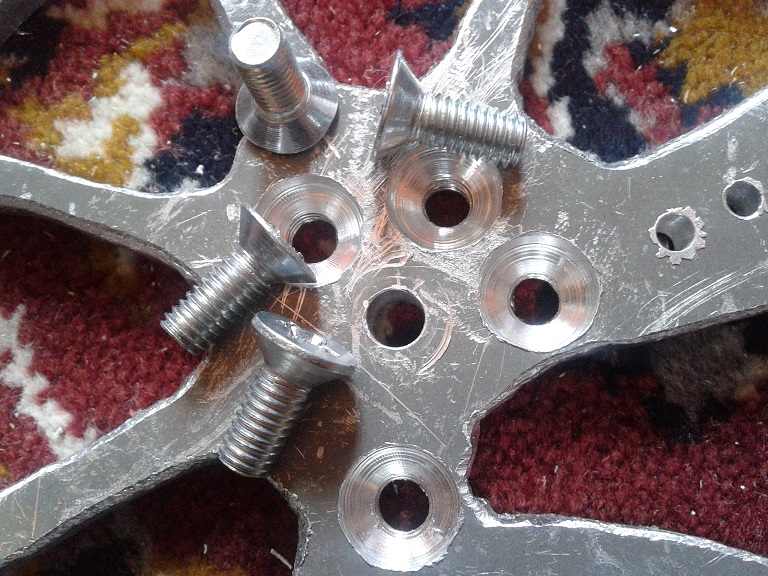

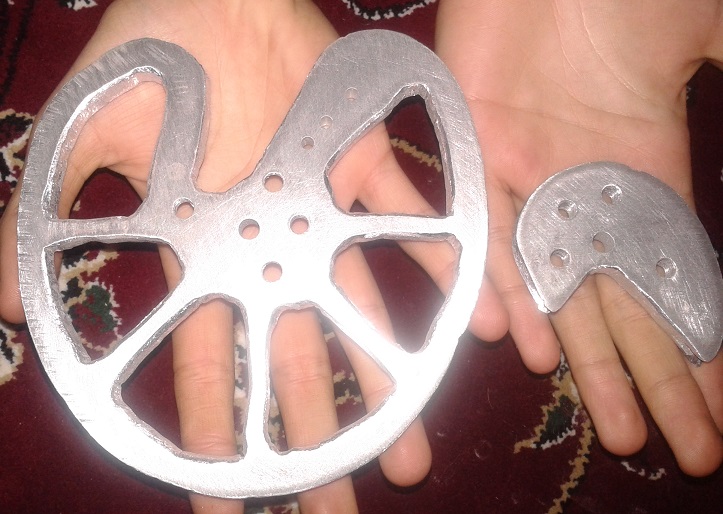

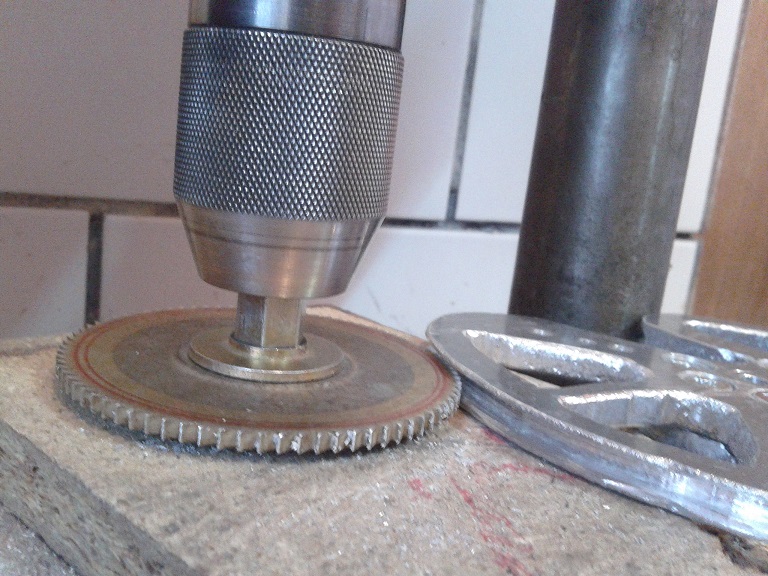

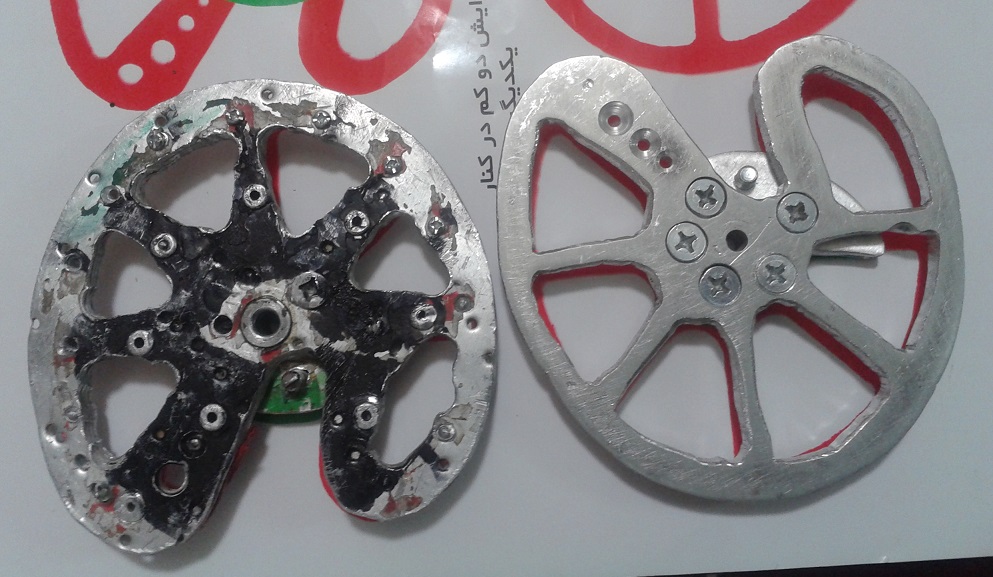

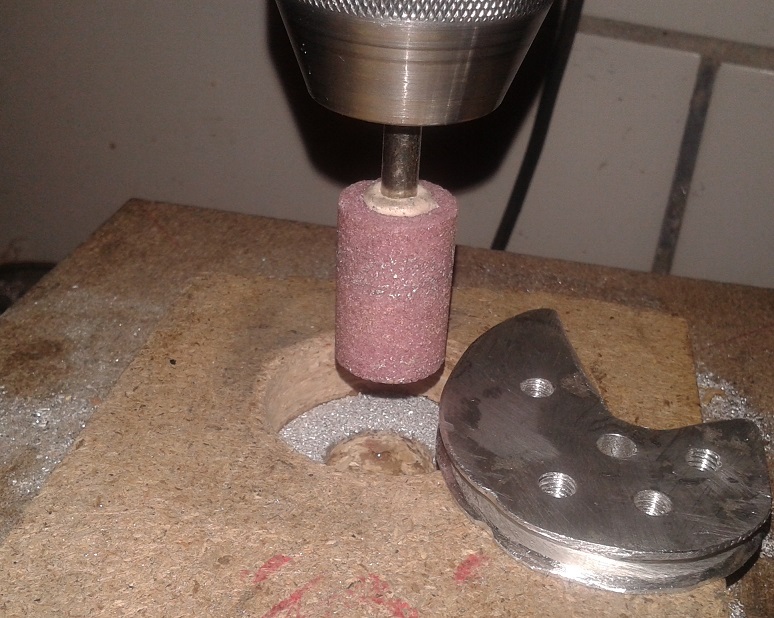

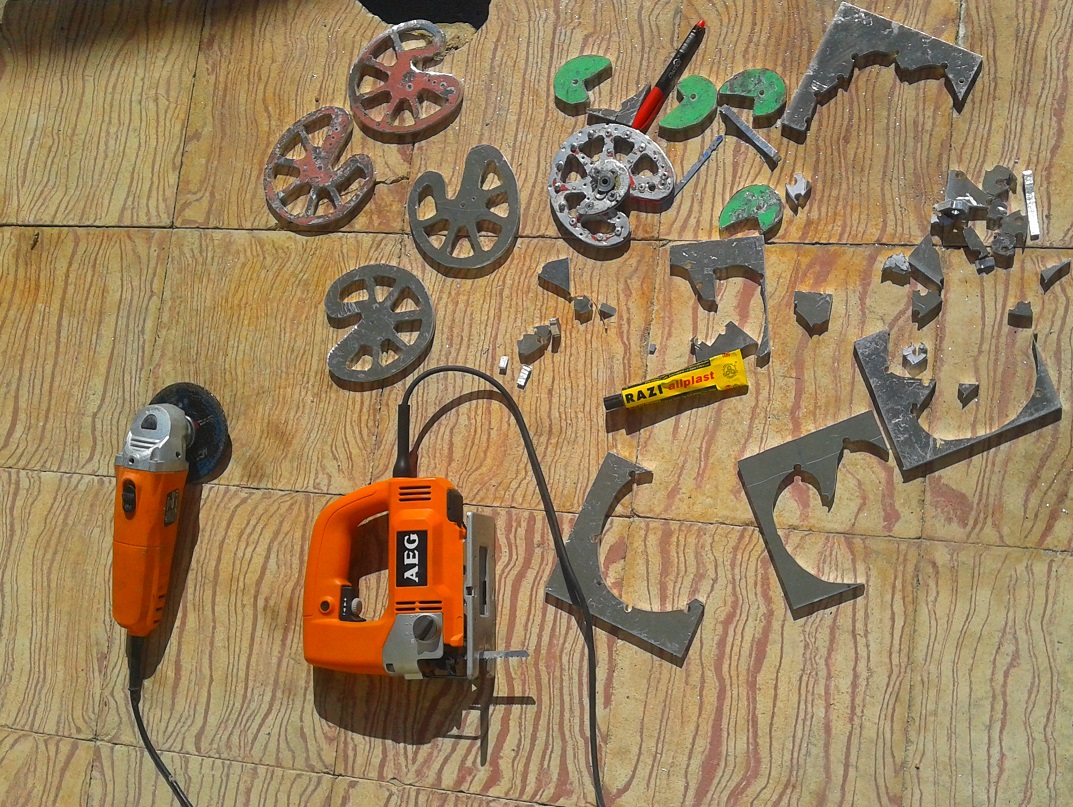

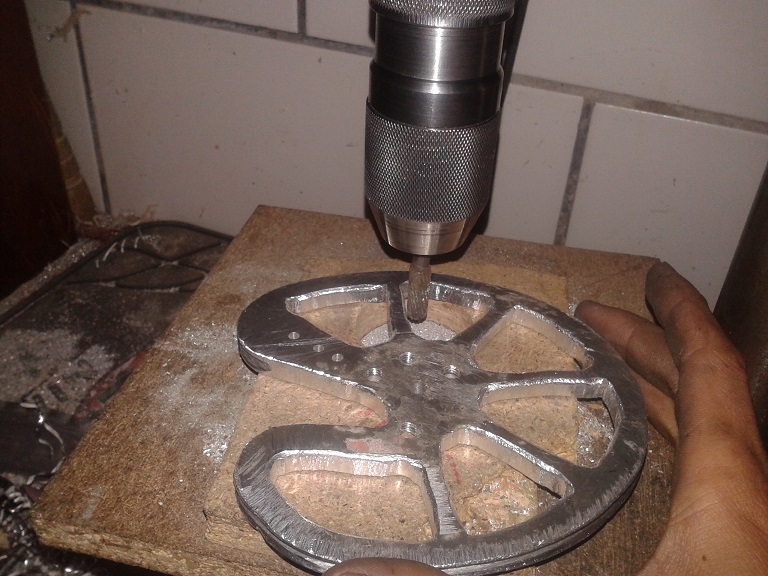

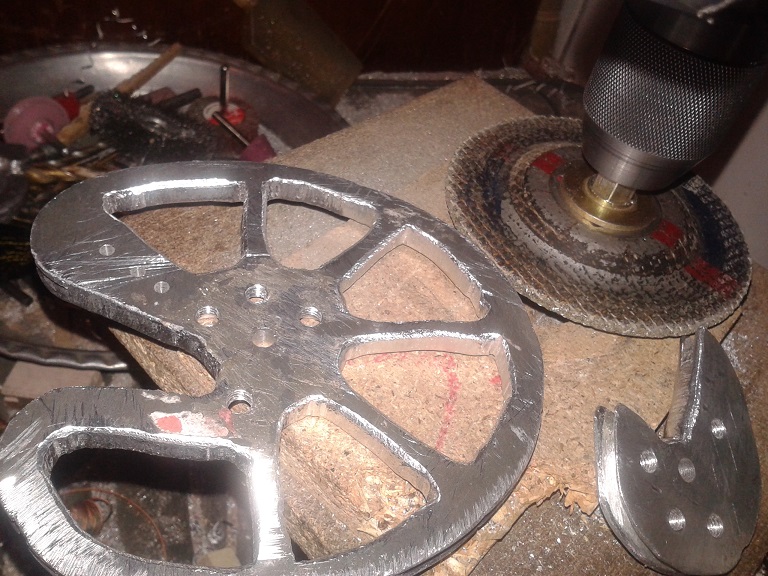

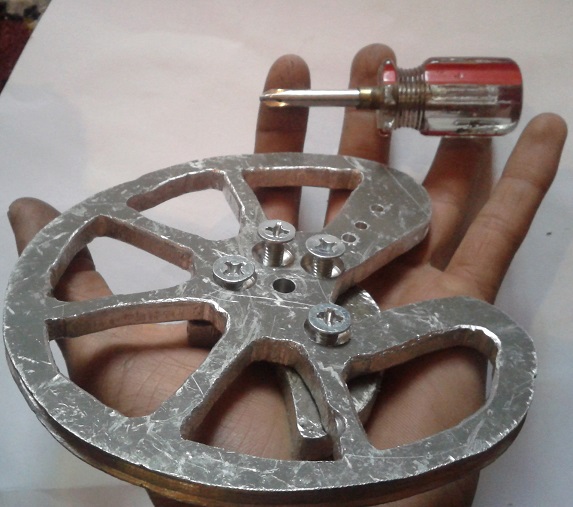

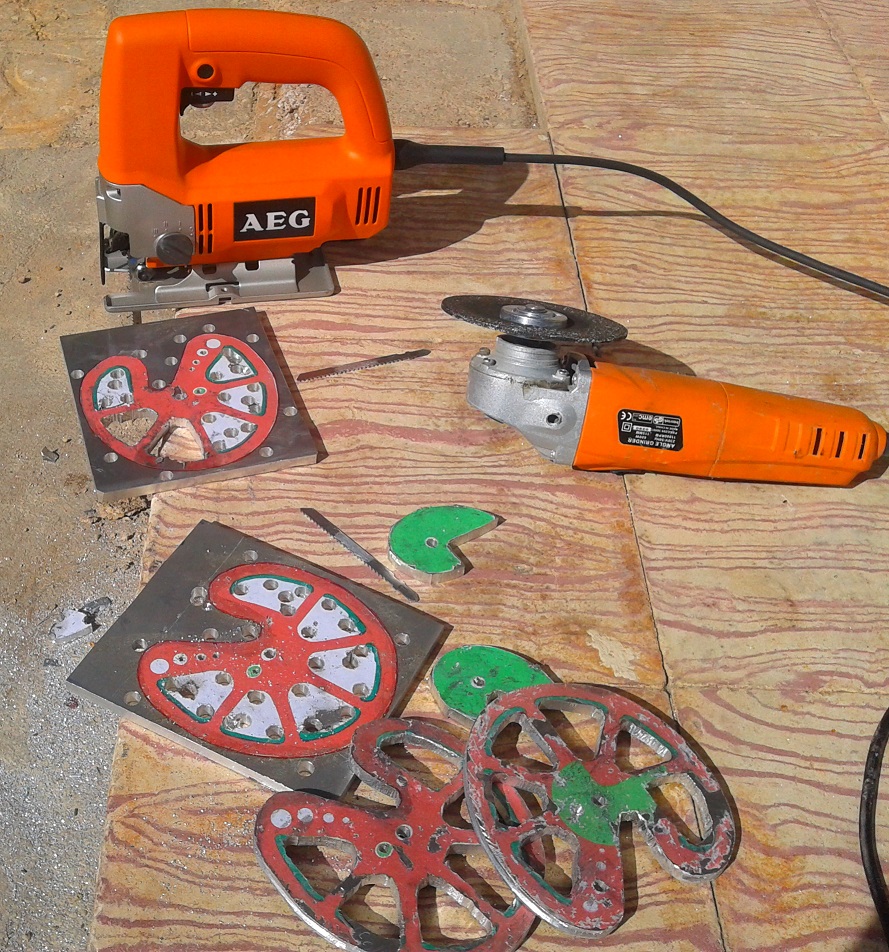

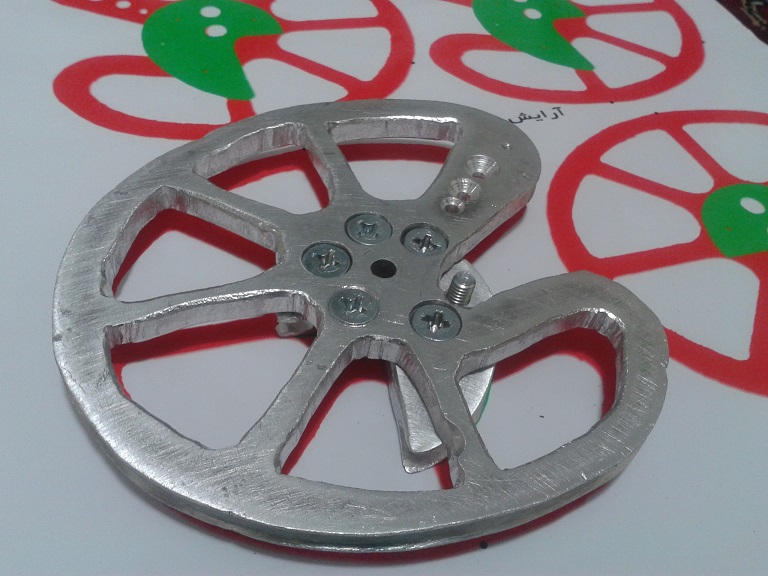

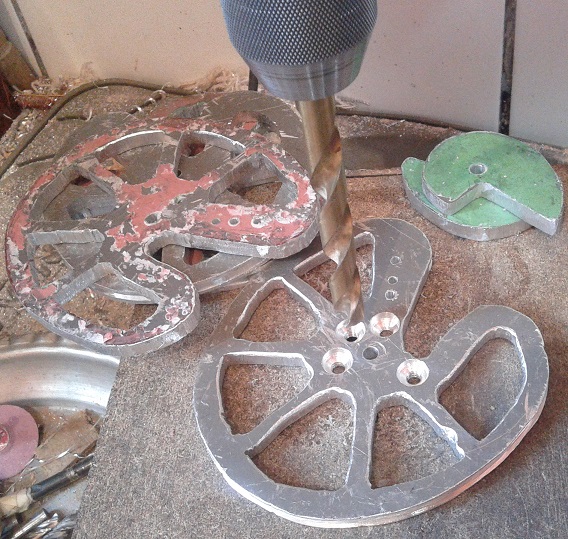

    disine cams...

    how made homemade (reverse) crossbow ? 25_14140631452070432


    how made homemade (reverse) crossbow ? 01_14140692371051761


    how made homemade (reverse) crossbow ? 01_1414069237105972


    how made homemade (reverse) crossbow ? 01_14140692574026511

    how made homemade (reverse) crossbow ? 11_14140775011098691


    how made homemade (reverse) crossbow ? 11_14140775047849212
    how made homemade (reverse) crossbow ? 12_14140787996029241


    how made homemade (reverse) crossbow ? 12_14140787996047443


    how made homemade (reverse) crossbow ? 12_14140787996039192


    how made homemade (reverse) crossbow ? 12_14140788023323211


    how made homemade (reverse) crossbow ? 12_14140788031436531


    how made homemade (reverse) crossbow ? 14_14140805170765951


    how made homemade (reverse) crossbow ? 14_14140805170775922



    how made homemade (reverse) crossbow ? 14_14140805195993182



    how made homemade (reverse) crossbow ? 21_1414086123937421


    how made homemade (reverse) crossbow ? 21_14140861239390792


    how made homemade (reverse) crossbow ? 21_14140861247384181


    how made homemade (reverse) crossbow ? 21_14140861247384181


    how made homemade (reverse) crossbow ? 21_14140861247397443


    how made homemade (reverse) crossbow ? 21_1414086125322252


    how made homemade (reverse) crossbow ? 21_14140864228256832


    how made homemade (reverse) crossbow ? 23_14140882884065651


    how made homemade (reverse) crossbow ? 23_1414088289051662



    how made homemade (reverse) crossbow ? 23_14140882890526123


    how made homemade (reverse) crossbow ? 06_14141002604181961


    how made homemade (reverse) crossbow ? 06_14141002651191143



    scope rile mading

    how made homemade (reverse) crossbow ? 11_1414104502536991


    how made homemade (reverse) crossbow ? 11_14141045025377332


    how made homemade (reverse) crossbow ? 11_14141045025386193


    how made homemade (reverse) crossbow ? 15_1414107850525572



    90% complate...

    how made homemade (reverse) crossbow ? 15_14141078505264733


    how made homemade (reverse) crossbow ? 15_14141078532759631


    how made homemade (reverse) crossbow ? 15_14141078532767162


    made wincher

    how made homemade (reverse) crossbow ? 18_14141107662275211


    http://www.aparat.com/v/2RjQ6
    avatar
    kenh
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 848
    Join date : 2012-08-03
    Age : 73
    Location : Living Aboard a Sailboat in Fort Myers, FL

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by kenh Tue Oct 07, 2014 6:52 pm

    Very  interesting!  More hand work than I want to do, but very nicely done!
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 581
    Join date : 2010-02-25
    Age : 59
    Location : sellersville,pa.

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by Todd the archer Wed Oct 08, 2014 2:20 am

    Great work, especially when you consider what you have to work with.
    avatar
    jeep
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 379
    Join date : 2011-04-07

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by jeep Wed Oct 08, 2014 12:04 pm

    Hurrah! for the brave!! And it look very powerful.. What is the weight of the beast?
    ali.j
    ali.j
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 76
    Join date : 2013-10-30
    Age : 27
    Location : iran- shiraz

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by ali.j Wed Oct 08, 2014 12:06 pm

    tanx. this lims power is 130 lbs I think that up to 180 _200 lbs power. soo today i tray to made a new hard steel lims. was so defecult to me.

    how made homemade (reverse) crossbow ? 08_1414127632810291

    how made homemade (reverse) crossbow ? 08_1414127632812043

    how made homemade (reverse) crossbow ? 08_14141278973152641
    ali.j
    ali.j
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 76
    Join date : 2013-10-30
    Age : 27
    Location : iran- shiraz

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by ali.j Wed Oct 08, 2014 12:14 pm

    Rizzar wrote:Hey Ali!


    Especially the good idea with the trigger can ease work for many around here that are always searching for alternatives.

    ....
    .

    Greetings Rizzar

    tanx dear rizzar.
    in new crosbow proje i use an other trigger sistem. is faster reaction trigger and With very little pressure works (60 gram)
    plz see this my video about new crossbow.




    how made homemade (reverse) crossbow ? 02_14140700033677982'
    how made homemade (reverse) crossbow ? 05_14140991734935651

    how made homemade (reverse) crossbow ? 30_14140942641127742

    how made homemade (reverse) crossbow ? 05_14140991759583831

    how made homemade (reverse) crossbow ? 05_14140991776672861

    how made homemade (reverse) crossbow ? 05_14140991776681322

    how made homemade (reverse) crossbow ? 05_14140991785323881
    ali.j
    ali.j
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 76
    Join date : 2013-10-30
    Age : 27
    Location : iran- shiraz

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by ali.j Wed Oct 08, 2014 12:20 pm

    jeep wrote:Hurrah! for the brave!! And it look very powerful.. What is the weight of the beast?
    crossbow wight is 4.7 kg now.  and power limb is 130 pound
    avatar
    stm2010
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows


    Posts : 46
    Join date : 2013-01-08

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by stm2010 Wed Oct 08, 2014 8:47 pm

    Very comprehensive processes,you made everything manually。
    ali.j
    ali.j
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 76
    Join date : 2013-10-30
    Age : 27
    Location : iran- shiraz

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by ali.j Thu Oct 30, 2014 1:09 pm

    my home made rdt crossbow is 95% complate.  Cool

    its my home made rdt crossbow.  Cool


    how made homemade (reverse) crossbow ? 30_1414146963181021


    how made homemade (reverse) crossbow ? 30_14141469631831042


    how made homemade (reverse) crossbow ? 30_14141469631837843

    how made homemade (reverse) crossbow ? 30_14141469686574471how made homemade (reverse) crossbow ? 30_1414146968658922
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 581
    Join date : 2010-02-25
    Age : 59
    Location : sellersville,pa.

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by Todd the archer Thu Oct 30, 2014 6:09 pm

    You are a craftsman! Good work>

    Todd
    avatar
    Andy.
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 129
    Join date : 2014-09-05

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by Andy. Thu Oct 30, 2014 11:37 pm

    Yes great work!

    How does she shoot?
    ali.j
    ali.j
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 76
    Join date : 2013-10-30
    Age : 27
    Location : iran- shiraz

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by ali.j Wed Nov 05, 2014 4:56 am

    today .... test.



    how made homemade (reverse) crossbow ? 05_14141518251991491how made homemade (reverse) crossbow ? 05_14141518251999982
    today Chronographi test
    31 grams ( 500 grain) arow shoting at 350 fps.

    and group shoting test
    distance 35 meters
    home made rdt crossbow. 185 lbs.
    : ( red arrows home made 25 grams - gray arrows 31 grams horton)
    i need beter cams.
    ali.j
    ali.j
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 76
    Join date : 2013-10-30
    Age : 27
    Location : iran- shiraz

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by ali.j Sun Nov 23, 2014 12:09 pm

    خب اینم یه پست بدون شرح تصویری. تعداد زیاد عکسها به منظور آشنایی با جزییات ساخت و مستندوار شدن پست هست. تا شاید بعد کسی بخواد بسازه روش های ساخت دستش بیاد؛ آلمینیوم آلیاژی شماره 7075 هست اهل فن میدونند یعنی سخت ترین نوع آلیاژ آلمینیوم و کارکردن باهاش باتوجه به امکانات ناچیز بنده بسیار سخت وبرای تکمیل همین یک کم دوروز وقت آزادم صرف شد.

    ( عکس ها به ترتیب )



    Well here's a post without explanation. The large number of photos to be familiar with the details of construction and the post is documented. Maybe someone wants to build a way of making him come; No. 7075 aluminum alloy is an alloy of aluminum and expert knows that the hardest working very hard, I'm considering the meager facilities for the completion of this a little, two days was spent on the free time.


    how made homemade (reverse) crossbow ? 1


    how made homemade (reverse) crossbow ? 4

    how made homemade (reverse) crossbow ? 5

    how made homemade (reverse) crossbow ? 6

    how made homemade (reverse) crossbow ? 7

    how made homemade (reverse) crossbow ? 8


    how made homemade (reverse) crossbow ? 9how made homemade (reverse) crossbow ? 10

    how made homemade (reverse) crossbow ? 11

    how made homemade (reverse) crossbow ? 12

    how made homemade (reverse) crossbow ? 13

    how made homemade (reverse) crossbow ? 14

    how made homemade (reverse) crossbow ? 15

    how made homemade (reverse) crossbow ? 16

    how made homemade (reverse) crossbow ? 17

    اینم کم جدیددرکنار کم ساندویچی قدیمی؛ فعلا وزنشون نکردم


    old cam - new cam

    how made homemade (reverse) crossbow ? 18
    ali.j
    ali.j
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 76
    Join date : 2013-10-30
    Age : 27
    Location : iran- shiraz

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by ali.j Wed Nov 26, 2014 9:21 am

    new cam wight 168 grams. i made 2 new cam.

    soo  my rdt is complate 97%

    how made homemade (reverse) crossbow ? 26_14141702001112471

    how made homemade (reverse) crossbow ? 26_14141702001125692

    how made homemade (reverse) crossbow ? 26_14141702001137033
    avatar
    kenh
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 848
    Join date : 2012-08-03
    Age : 73
    Location : Living Aboard a Sailboat in Fort Myers, FL

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by kenh Wed Nov 26, 2014 9:36 am

    Looking really good so far.  Now for the 3% string!
    ali.j
    ali.j
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 76
    Join date : 2013-10-30
    Age : 27
    Location : iran- shiraz

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by ali.j Wed Nov 26, 2014 4:33 pm

    need string  and better fod place and Rubber bumpers string.

     tonight photos.

    how made homemade (reverse) crossbow ? 1how made homemade (reverse) crossbow ? 2

    how made homemade (reverse) crossbow ? 3

    how made homemade (reverse) crossbow ? 4

    how made homemade (reverse) crossbow ? 5

    how made homemade (reverse) crossbow ? 6

    how made homemade (reverse) crossbow ? 7
    ali.j
    ali.j
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 76
    Join date : 2013-10-30
    Age : 27
    Location : iran- shiraz

    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by ali.j Thu Nov 27, 2014 2:31 pm

    how made homemade (reverse) crossbow ? 27_14141712422581263)

    how made homemade (reverse) crossbow ? 27_14141712422559741

    how made homemade (reverse) crossbow ? 27_14141712422571052

    how made homemade (reverse) crossbow ? 27_14141712461078631

    Sponsored content


    how made homemade (reverse) crossbow ? Empty Re: how made homemade (reverse) crossbow ?

    Post by Sponsored content


      Current date/time is Wed Dec 08, 2021 9:02 am
