    Cheap/Easy Arrow Retention Spring

    avatar
    jaeger22
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 153
    Join date : 2013-03-15
    Age : 74
    Location : Orlando, FL

     Cheap/Easy Arrow  Retention Spring Empty Cheap/Easy Arrow Retention Spring

    Post by jaeger22 Sat Jun 21, 2014 4:42 am

    To finish up my hammer trigger I only need to add a retention spring of some type. I remembered seeing somewhere, I think on this site, that you could make one from PVC pipe. That sounded a bit strange to me but I was curious so I gave it a try. And it worked great! cheers
    So I thought I would share.
    First I cut a section of 3/4" thin walled PVC pipe in half. Then I heated it with a heat gun and when it got soft, I clamped it between two boards and let it cool. Looking at the nice flat springy material the came out, no one would ever guess it came from a pipe.

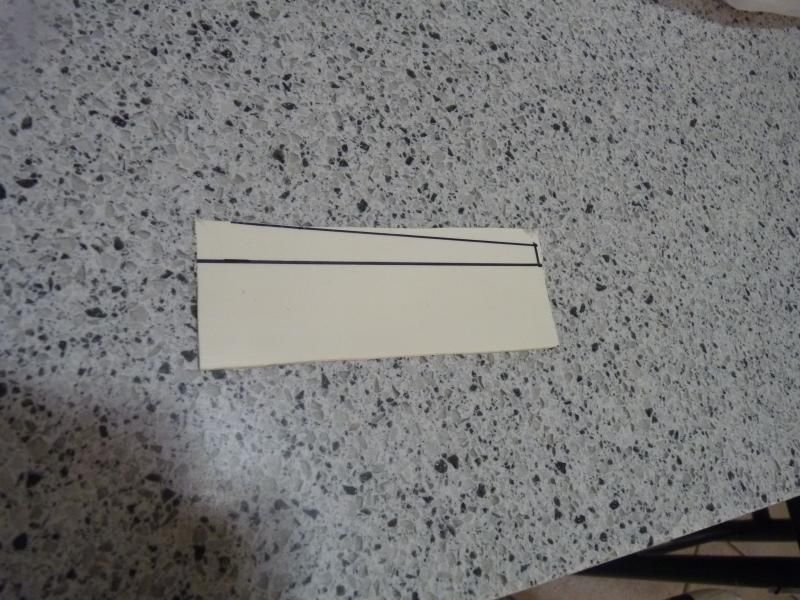

    Here is a picture with the retention spring laid out:
     Cheap/Easy Arrow  Retention Spring P1010856_zps46957fb4

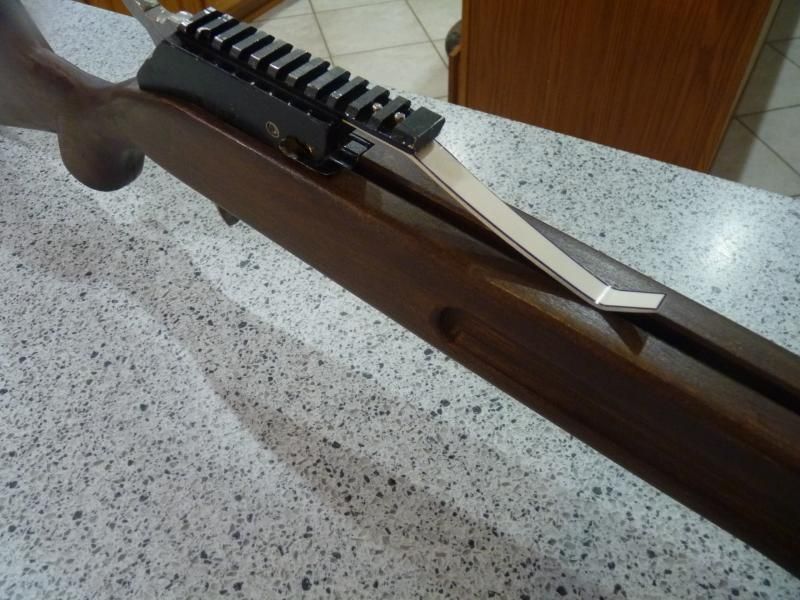

    And here it is cut out, heated again and bent, and screwed to the lock.

     Cheap/Easy Arrow  Retention Spring P1010857_zps8ebf05e4

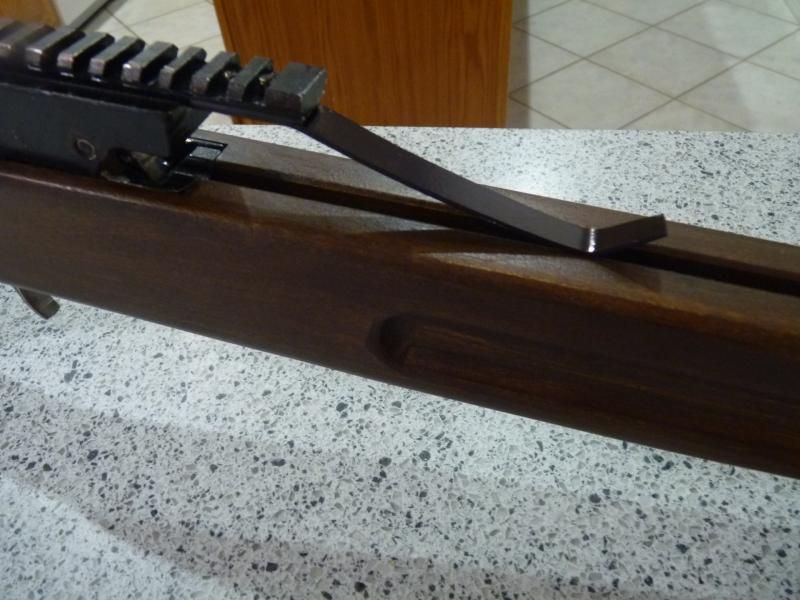

    A quick few minutes with a sharpie turned it into this:

     Cheap/Easy Arrow  Retention Spring P1010864_zps9bc969d5

    My little test bed bow actually turned out to be quite a nice shooter. No power house but simple and a lot of fun to shoot. I am going to leave it alone now and built a couple of other "test beds" for my other new action designs.
    Too many fun things to experment with, not enough time! tongue
    John
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 581
    Join date : 2010-02-25
    Age : 60
    Location : sellersville,pa.

     Cheap/Easy Arrow  Retention Spring Empty Re: Cheap/Easy Arrow Retention Spring

    Post by Todd the archer Sat Jun 21, 2014 12:24 pm

    Yes I use PVC myself although mine was from schedule 40 and I did not flatten the strip just heated and molded in a form.
     Cheap/Easy Arrow  Retention Spring Lock

    Todd
    avatar
    jaeger22
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 153
    Join date : 2013-03-15
    Age : 74
    Location : Orlando, FL

     Cheap/Easy Arrow  Retention Spring Empty Re: Cheap/Easy Arrow Retention Spring

    Post by jaeger22 Sat Jun 21, 2014 7:58 pm

    Wow! That is a work of art Todd! cheers
