    Reverse draw pistol crossbow

    Kale Schlegel
    Kale Schlegel
    Kale Schlegel
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 75
    Join date : 2012-08-14
    Age : 32
    • Post n°1

    Reverse draw pistol crossbow Empty Reverse draw pistol crossbow

    Post by Kale Schlegel Thu Oct 04, 2012 5:03 pm

    Anyone ever make or see one? Sorry if the title got you excited, woo! for letdowns.. anyhow lemme know. Reverse draw pistol crossbow 524936
    • Back to top
    Warhammer1
    Warhammer1
    Warhammer1
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 68
    Join date : 2011-04-02
    • Post n°2

    Reverse draw pistol crossbow Empty Re: Reverse draw pistol crossbow

    Post by Warhammer1 Sat Oct 06, 2012 8:53 am

    Yes. There might even be a pic or two on here somewhere. I designed two versions, one a inswinging pistol type with about 20" drawlength, and another design that most resembles the Gearhead crossbows that were supposed to come out about a year or so ago.

    easiest way to make one is to get a new bull pup style Hickory Creek inline draw loc, and simply add your riser and levers. Ends up like a TAC15 pistol, railess and using a whisker bisket.

    Equipped with a 50-75lbs draw weight and 20" powerstroke, there is some serious speeds happening there. Good luck with your build.

    W.
    • Back to top
    Kale Schlegel
    Kale Schlegel
    Kale Schlegel
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 75
    Join date : 2012-08-14
    Age : 32
    • Post n°3

    Reverse draw pistol crossbow Empty Re: Reverse draw pistol crossbow

    Post by Kale Schlegel Sat Oct 06, 2012 2:22 pm

    That sounds interesting, trying to picture it in my head. Sounds right up my alley!
    • Back to top
    Ivo
    Ivo
    Ivo
    Admin
    Admin


    Posts : 1041
    Join date : 2009-11-25
    Age : 36
    Location : NJ, USA
    • Post n°4

    Reverse draw pistol crossbow Empty Re: Reverse draw pistol crossbow

    Post by Ivo Sat Oct 06, 2012 4:04 pm

    Don't picture it in your head. Laughing Hit up the Search button with all the hints Warhammer gave yo, it's all on the forum...and start sketching ideas!

    PS: I coined a 1/2 stock bullpup pistol crossbow under Arbalisk...

    Spoiler:

    ...it's been done, but didn't have a dedicated name...sooo tongue

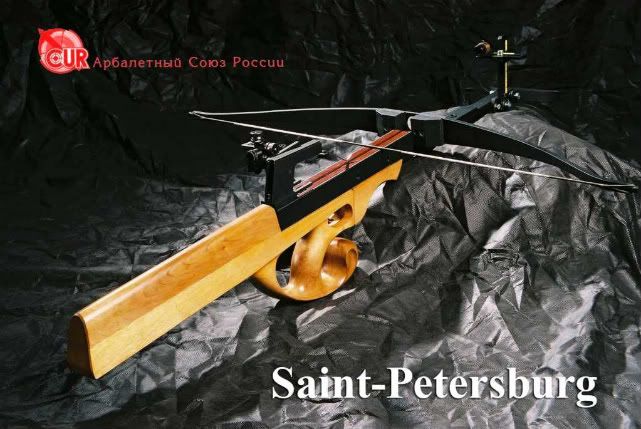

    Reverse draw pistol crossbow F1000013-1

    https://thearbalistguild.forumotion.com/t551-pistol-crossbow-trigger-design#4857

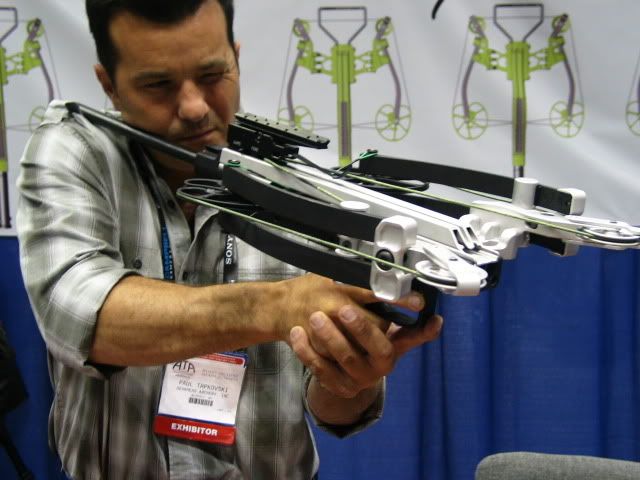

    With this setup you can take either the Gearhead

    Reverse draw pistol crossbow GH1

    or Scorpyd system...

    Reverse draw pistol crossbow Toye0010

    and you got a wicked bow. Reverse draw pistol crossbow 524936

    Now to make it nice and organic looking....I got some sketches...but it's interesting what you come up with....possibilities are endless there. Wink
    • Back to top
    Warhammer1
    Warhammer1
    Warhammer1
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 68
    Join date : 2011-04-02
    • Post n°5

    Reverse draw pistol crossbow Empty Re: Reverse draw pistol crossbow

    Post by Warhammer1 Sun Oct 07, 2012 10:00 am

    Here is a facebook pic of torsion pistol crossbow. It is all business with over 20" drawlength.

    https://www.facebook.com/photo.php?fbid=142772729138325&set=a.142772692471662.36557.100002167974802&type=3&theater

    Originally designed as a kickass torsion assist slingshot, with quad powerbands, 75lbs draw. Extended fork inswinging design for slingshot allows for some wicked speeds and projectile weight.

    Its a simple thing to change string design and it operates just like the Gearhead. The torsion scorpyd crossbow gets 200fps with a 350 grain arrow using only 50 lbs pull. Fun toys.

    W.
    • Back to top
    Kale Schlegel
    Kale Schlegel
    Kale Schlegel
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 75
    Join date : 2012-08-14
    Age : 32
    • Post n°6

    Reverse draw pistol crossbow Empty Re: Reverse draw pistol crossbow

    Post by Kale Schlegel Sun Oct 07, 2012 12:33 pm

    Has Gearhead archery even put anything into the production phase or is it all simply ooh look at this and that?
    • Back to top
    Todd the archer
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 581
    Join date : 2010-02-25
    Age : 62
    Location : sellersville,pa.
    • Post n°7

    Reverse draw pistol crossbow Empty Re: Reverse draw pistol crossbow

    Post by Todd the archer Sun Oct 07, 2012 2:14 pm

    Don't think gearhead ever got the financial backing it needed to get started.



    Todd
    • Back to top
    Kale Schlegel
    Kale Schlegel
    Kale Schlegel
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 75
    Join date : 2012-08-14
    Age : 32
    • Post n°8

    Reverse draw pistol crossbow Empty Re: Reverse draw pistol crossbow

    Post by Kale Schlegel Mon Oct 08, 2012 12:47 pm

    Warhammer, is that the torsion mount on your Scorpyd ? I'd like to see a few up close pics if it is!
    • Back to top
    Warhammer1
    Warhammer1
    Warhammer1
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 68
    Join date : 2011-04-02
    • Post n°9

    Reverse draw pistol crossbow Empty Re: Reverse draw pistol crossbow

    Post by Warhammer1 Fri Oct 12, 2012 9:05 am

    Yes, thats a Scorpyd torsion. Could use a little more power, but 200fps in the house is plenty fast. Its a little wide, but have other versions as narrow as 15" inches axle to axle. Still gets over 20" of powerstroke. If ever a hunting pistol were to be produced, this is one design that would certainly have the performance needed.

    No closeups, but features one piece top and bottom levers, uses a single extension spring for power. Optimized performance and design for 50lbs draw weight, attains 200fps with 350 grain arrow or approx 7 grains of arrow weight per lbs of pull. Each pound of pull produces 4 fps.

    A 200 lbs modern recurve bow will shoot about 300fps using a 400 grain arrow, or approximately 2 grains of arrow weight per lbs of pull. Each lbs of pull produces about 1.5 fps arrow speed.
    • Back to top
    jeep
    avatar
    jeep
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 379
    Join date : 2011-04-07
    • Post n°10

    Reverse draw pistol crossbow Empty Re: Reverse draw pistol crossbow

    Post by jeep Fri Oct 12, 2012 12:17 pm

    Warhammer1 wrote:Here is a facebook pic of torsion pistol crossbow. It is all business with over 20" drawlength.

    https://www.facebook.com/photo.php?fbid=142772729138325&set=a.142772692471662.36557.100002167974802&type=3&theater

    Originally designed as a kickass torsion assist slingshot, with quad powerbands, 75lbs draw. Extended fork inswinging design for slingshot allows for some wicked speeds and projectile weight.

    Its a simple thing to change string design and it operates just like the Gearhead. The torsion scorpyd crossbow gets 200fps with a 350 grain arrow using only 50 lbs pull. Fun toys.

    W.


    Sorry warhammmer but I cant open this tread it say that it have been removed. Other way to see it?
    • Back to top
    Warhammer1
    Warhammer1
    Warhammer1
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 68
    Join date : 2011-04-02
    • Post n°11

    Reverse draw pistol crossbow Empty Re: Reverse draw pistol crossbow

    Post by Warhammer1 Fri Oct 12, 2012 1:07 pm

    pm me your email address and I'll send a pic by email as an attachment to you. Perhaps you can then post it here. Im no computer genius at all...

    Joel.
    • Back to top
    Ivo
    Ivo
    Ivo
    Admin
    Admin


    Posts : 1041
    Join date : 2009-11-25
    Age : 36
    Location : NJ, USA
    • Post n°12

    Reverse draw pistol crossbow Empty Re: Reverse draw pistol crossbow

    Post by Ivo Fri Oct 12, 2012 1:10 pm

    For christ's sake man....you can build a crossnow exceeding the performance of some of the leading bows out there and cant figure out how to post a damn picture...even with a video tutorial available? Maybe im being a bit blunt here...but damn. Pull yourself tigether man! Laughing
    • Back to top
    Warhammer1
    Warhammer1
    Warhammer1
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 68
    Join date : 2011-04-02
    • Post n°13

    Reverse draw pistol crossbow Empty Re: Reverse draw pistol crossbow

    Post by Warhammer1 Fri Oct 12, 2012 1:28 pm

    my computer does not like the youtube video channel I tried to get going either, or the site you use to park pics and vids. I tried both, but no luck. Just not worth the aggravation to me anymore.
    • Back to top
    Ivo
    Ivo
    Ivo
    Admin
    Admin


    Posts : 1041
    Join date : 2009-11-25
    Age : 36
    Location : NJ, USA
    • Post n°14

    Reverse draw pistol crossbow Empty Re: Reverse draw pistol crossbow

    Post by Ivo Fri Oct 12, 2012 5:30 pm

    Aha...and I'm here for shits and giggles? Laughing...drop me a note with the specs of the computer, browser you're using, and the problem...and I'll see what I can do to help out. As medieval as the forum's direction may be...it still deserves some eye candy to go with the text... and you my friend, got some good stuff! (try to act like it Reverse draw pistol crossbow 951629)

    Ivo
    • Back to top
