    Musket butt crossbow and triggers

    Stonedog
    avatar
    Stonedog
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 108
    Join date : 2012-07-04
    • Post n°1

    Musket butt crossbow and triggers Empty Musket butt crossbow and triggers

    Post by Stonedog Fri Jan 04, 2013 1:49 pm

    OK, I want to build a crossbow stock with a definite Colonial America flavor....I want to use a roller nut....I do not want a fancy, complicated trigger assembly....but I DO want something that pulls and looks like a modern-ish trigger....

    Any ideas or designs?
    • Back to top
    kenh
    kenh
    kenh
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 884
    Join date : 2012-08-03
    Age : 76
    Location : Living Aboard a Sailboat in Fort Myers, FL
    • Post n°2

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by kenh Fri Jan 04, 2013 2:57 pm

    Do you mean a matchlock musket (1600-1700)? Or a Brown Bess flintlock (post-1722)? Both are "Colonial American" but about hundred years apart.

    Google "matchlock musket", find an image you like, copy and enlarge it to something like 18" or 19" between the trigger and the butt plate. There's your crossbow prod.

    Roller nuts are readily made from short lengths of 1-1/2" diameter Delrin rod available from the Internet for a few dollars. Looks like ivory or ebony depending on the color you choose.

    Search here on "trigger" and "lock" and you'll find several discussions with diagrams of simple to complicated actions that can be applied to a roller nut. Depending on the draw weight you choose you'll need one or more links to take the weight off of the trigger pull.
    • Back to top
    chaz
    avatar
    chaz
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 313
    Join date : 2012-04-13
    Age : 76
    Location : Texas
    • Post n°3

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by chaz Fri Jan 04, 2013 3:23 pm

    Stoney,

    Go to e-bay and look up The American Percussion Schuetzen Target Rifle and look at the cover of that book ! Talk about a neat lookin' stock ! Built as a crossbow would be WOW FACTOR !

    Chaz
    • Back to top
    Stonedog
    avatar
    Stonedog
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 108
    Join date : 2012-07-04
    • Post n°4

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by Stonedog Fri Jan 04, 2013 3:34 pm

    Oh, I know about the Colonial Era....my love is the KY Settlement Era from 1775-1786. In fact, I reenacted (to VERY strict standards) that era for years....

    I know what I want the crossbow to look like....just curious about trigger designs that will be more like a single trigger for the Era.....I think I have trigger that will work...
    • Back to top
    Todd the archer
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 581
    Join date : 2010-02-25
    Age : 62
    Location : sellersville,pa.
    • Post n°5

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by Todd the archer Fri Jan 04, 2013 6:04 pm

    • Back to top
    Stonedog
    avatar
    Stonedog
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 108
    Join date : 2012-07-04
    • Post n°6

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by Stonedog Fri Jan 04, 2013 7:26 pm

    Todd-

    That is exactly the picture I needed....I am building mine with a bit more primitive trigger and in the style of the "Jaeger" style...going to go with iron furniture for mine!
    • Back to top
    Todd the archer
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 581
    Join date : 2010-02-25
    Age : 62
    Location : sellersville,pa.
    • Post n°7

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by Todd the archer Sat Jan 05, 2013 3:25 am

    Glad the pictures helped. Jaeger style is cool as well. The hardest part is to come up with a trigger that you pull with one finger, suggest you make one that uses several axles and "transition levers". Not really all that complicated just a few more pieces and I think you will find it well worth the effort.

    Todd
    • Back to top
    B.Cheers
    B.Cheers
    B.Cheers
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 60
    Join date : 2012-10-08
    Age : 35
    Location : Austrailia Brisbane
    • Post n°8

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by B.Cheers Sat Jan 05, 2013 4:58 am

    Easiest way ive found to make a easy pull trigger is leverage, the more leverage that can be achieved with the sear latch and trigger the better but also keeping in mind the postion of the axis's of these two parts.
    Cheers cheers
    • Back to top
    Stonedog
    avatar
    Stonedog
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 108
    Join date : 2012-07-04
    • Post n°9

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by Stonedog Sat Jan 05, 2013 5:09 am

    http://www.webarcherie.com/forum/index.php/topic/16046-mecanismes-de-declenchement/page__view__findpost__p__397095?s=974a49821a919a39dcab46ae5e6876de

    Well, I am looking at numbers 7 & 8 on the above web page. I am probably going to give #7 a try....I can design it so that it locks into place and still have a light trigger pull....

    Also, it is simple, yet effective....and in my eyes....simple is best!
    • Back to top
    Stonedog
    avatar
    Stonedog
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 108
    Join date : 2012-07-04
    • Post n°10

    Musket butt crossbow and triggers Empty Mental Block...

    Post by Stonedog Sat Jan 05, 2013 1:37 pm

    Ok, I have some king of mental block with a trigger design for this Jaeger Style stock...

    Please design me one!

    Here is a pic:

    Musket butt crossbow and triggers Jaeger13
    • Back to top
    B.Cheers
    B.Cheers
    B.Cheers
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 60
    Join date : 2012-10-08
    Age : 35
    Location : Austrailia Brisbane
    • Post n°11

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by B.Cheers Sun Jan 06, 2013 12:50 am

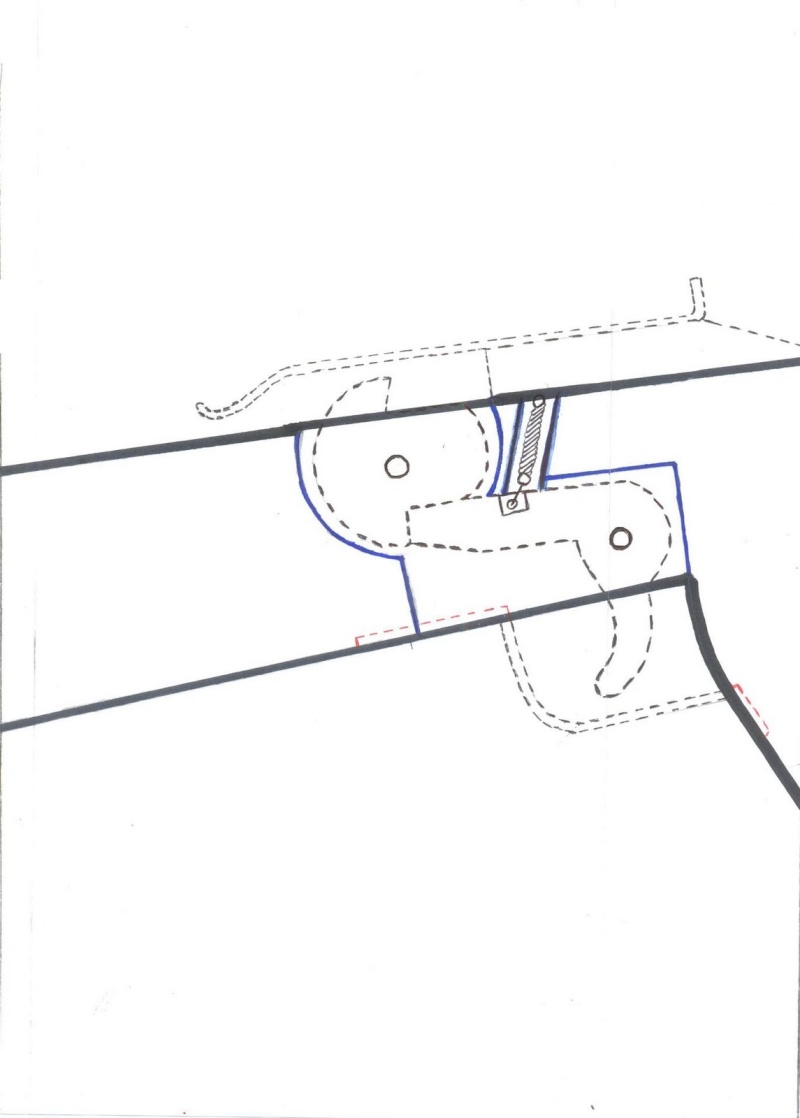

    Musket butt crossbow and triggers Crossb10
    • Back to top
    Todd the archer
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 581
    Join date : 2010-02-25
    Age : 62
    Location : sellersville,pa.
    • Post n°12

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by Todd the archer Sun Jan 06, 2013 3:54 am

    Whilee "B's" picture looks simple it has a problem. Due to ratio of leverage the trigger pull will be extremely heavy. I will try to draw something with transitional lever and post it later.

    Todd
    • Back to top
    Todd the archer
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 581
    Join date : 2010-02-25
    Age : 62
    Location : sellersville,pa.
    • Post n°13

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by Todd the archer Sun Jan 06, 2013 4:56 am

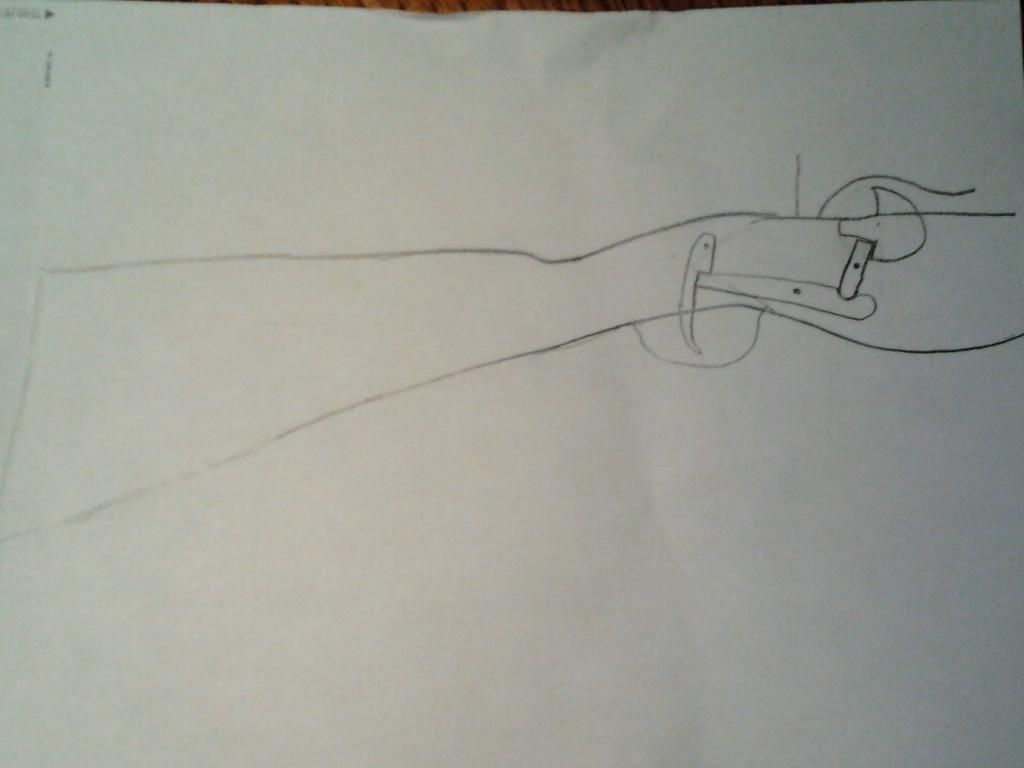

    Here is a drawing. Best to make a mock-up using luan or paneling to work out the geometry like I did in my build-along. If all works out use the cut outs as patterns.

    Musket butt crossbow and triggers 2013-01-0606_43_31_zpse81cca2b



    Todd
    • Back to top
    Stonedog
    avatar
    Stonedog
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 108
    Join date : 2012-07-04
    • Post n°14

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by Stonedog Sun Jan 06, 2013 5:16 am

    Maybe I am trying to over think this whole thing.....

    I do have a tickler....maybe I should just use what was (and still is) for hundreds of years....and worked!
    • Back to top
    Todd the archer
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 581
    Join date : 2010-02-25
    Age : 62
    Location : sellersville,pa.
    • Post n°15

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by Todd the archer Sun Jan 06, 2013 7:06 am

    I agree the tickler is the simplest solution that works very well, the only issue is trying to adapt that to a shoulder stock layout. It can be done, maybe have to move the nut forward a bit.

    Todd
    • Back to top
    MRobin
    avatar
    MRobin
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 67
    Join date : 2012-09-01
    Age : 35
    Location : Paris, France
    • Post n°16

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by MRobin Sun Jan 06, 2013 7:45 am

    Something like this will work fine

    Musket butt crossbow and triggers Easytrig

    Just be careful to have enough leverage, and not to make the notch too deep (as it is on your drawing). I have a crossbow that works with this kind of trigger shape, pretty smooth. Of course it won't move like an actual modern trigger, because of the position of the pivot point, but does the job
    • Back to top
    Ivo
    Ivo
    Ivo
    Admin
    Admin


    Posts : 1041
    Join date : 2009-11-25
    Age : 36
    Location : NJ, USA
    • Post n°17

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by Ivo Sun Jan 06, 2013 7:50 pm

    Of course it won't move like an actual modern trigger, because of the position of the pivot point, but does the job

    But if you split that single lever into two - trigger + transitional lever...it'll pull a bit more like home. Wink Add a spring held down with a screw/bolt and you'll just need to rotate the nut a bit to reset it.

    Musket butt crossbow and triggers Easytr10

    BTW: I joined the original and trigger into one topic to keep things together.

    Happy Building!

    Ivo

    PS: Did you check out this topic here: https://thearbalistguild.forumotion.com/t109-crossbow-triggers
    • Back to top
    Stonedog
    avatar
    Stonedog
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 108
    Join date : 2012-07-04
    • Post n°18

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by Stonedog Mon Jan 07, 2013 6:49 am

    Thank you Ivo! That should work great! I did check out that thread bit I didnae see anything that I thought would work.....

    • Back to top
    MRobin
    avatar
    MRobin
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there is a way.


    Posts : 67
    Join date : 2012-09-01
    Age : 35
    Location : Paris, France
    • Post n°19

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by MRobin Mon Jan 07, 2013 12:47 pm

    Ivo wrote:

    Yep, this is the best way..
    • Back to top
    Ivo
    Ivo
    Ivo
    Admin
    Admin


    Posts : 1041
    Join date : 2009-11-25
    Age : 36
    Location : NJ, USA
    • Post n°20

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by Ivo Mon Jan 07, 2013 11:35 pm

    I like the route we took here actually, nice break from the hook sears. They've been buzzing in my head so much lately with all the bull-pup designs that I completely forgot of the good ol' reliable. Laughing

    This was my first *successful* trigger group that I ripped off of a production crossbow...back when there was no Arbalist Guild. (Musket butt crossbow and triggers 602584What?!?! There was a time when this place didn't exist?!?!? Shocked)

    (yeh, please just ignore the background noise in that video Embarassed)



    In this modern version, as you can see, there's a pretty nice little automatic safety too. Would be cool to see this system used on a more classic setup one day. If interested, I think I know a way to incorporate a similar one quite easily into this type of build.

    Ivo
    • Back to top
    Todd the archer
    Todd the archer
    Todd the archer
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 581
    Join date : 2010-02-25
    Age : 62
    Location : sellersville,pa.
    • Post n°21

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by Todd the archer Mon Jan 14, 2013 4:29 pm

    Still looking for a simple trigger for a musket style crossbow? Check out Gnome's

    https://thearbalistguild.forumotion.com/t646-number-four#8228

    Todd
    • Back to top
    Sponsored content

    Sponsored content


    • Post n°22

    Musket butt crossbow and triggers Empty Re: Musket butt crossbow and triggers

    Post by Sponsored content

    • Back to top

      Current date/time is Sat Nov 23, 2024 6:00 am
