    Renaissance Sporting crossbow

    avatar
    tony a
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows


    Posts : 5
    Join date : 2017-03-10
    Location : Ca.

    Renaissance Sporting crossbow Empty Renaissance Sporting crossbow

    Post by tony a Wed Jun 14, 2017 12:44 am

    Renaissance Sporting crossbow Img_1727Renaissance Sporting crossbow Img_1834Renaissance Sporting crossbow Img_1835Renaissance Sporting crossbow Img_1836Renaissance Sporting crossbow Img_1837Renaissance Sporting crossbow Img_1728Renaissance Sporting crossbow Img_1729Renaissance Sporting crossbow Img_1838Renaissance Sporting crossbow Img_1839Renaissance Sporting crossbow Img_1840Renaissance Sporting crossbow Img_1841Renaissance Sporting crossbow Img_1842
    Renaissance Sporting crossbow Img_2120Renaissance Sporting crossbow Img_1721Renaissance Sporting crossbow Img_1722Renaissance Sporting crossbow Img_1623Renaissance Sporting crossbow Img_1624Renaissance Sporting crossbow Img_1625Renaissance Sporting crossbow Img_1822Renaissance Sporting crossbow Img_1824
    Renaissance Sporting crossbow Img_2109Renaissance Sporting crossbow Img_2110Renaissance Sporting crossbow Img_2111Renaissance Sporting crossbow Img_2112Renaissance Sporting crossbow Img_2113Renaissance Sporting crossbow Img_2114Renaissance Sporting crossbow Img_2115Renaissance Sporting crossbow Img_2116Renaissance Sporting crossbow Img_2117Renaissance Sporting crossbow Img_2118Renaissance Sporting crossbow Img_2119
    This is my rendition of a renaissance crossbow. See photos and how the parts were made and material used.

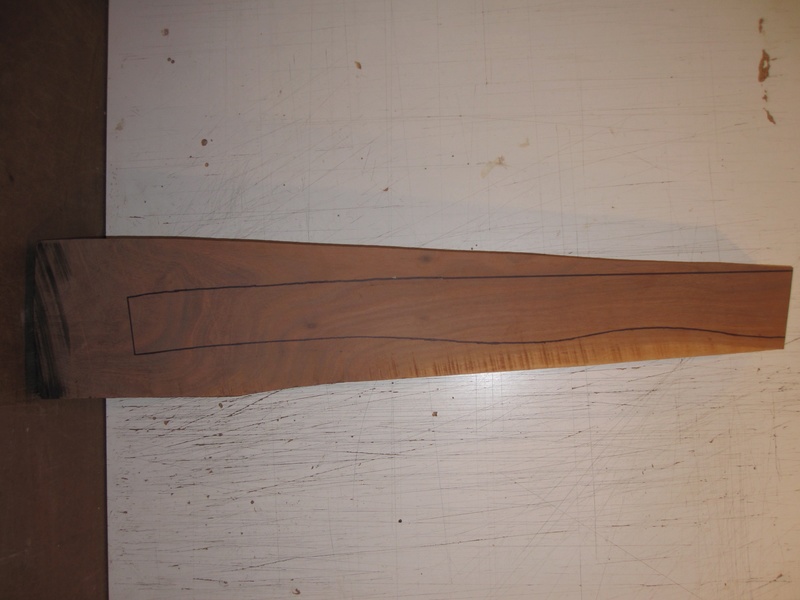

    A. American black walnut, used one of my rifle stock blanks.
    B. 3/16'' micarta for the top surface, butt end, and trigger plate.
    C. 1/2'' rosewood for bow retainer and rear butt end.
    D. 3/16''1018 steel for the bow irons.
    E. 3/4'' rd. bar 1018 steel for the three nuts.
    F. 3/8'' sq.bar, 3/4'' rd.bar 1018 steel and a lamp part for the trigger unit.
    G. 70 lb. alum bow from New World Arbalest, used alum black to color the bow.
    H. Delrin for the nut.
    I. Ebony for the nut cradle. Note made two cradles one from Chakte Viga hardness 2750, and Ebony hardness 3220.
    J. Brass applique rosette and leaf for decorations.
    K. 1/8''x 1/2'' and 1/4'' sq. 1018 steel for the trigger safety.
    L. 5/16'' set screw and nut retainer pressed into the rosewood to apply pressure to the bow.


    Last edited by tony a on Sat Jun 17, 2017 8:13 pm; edited 5 times in total (Reason for editing : adding pictures)
    Onager Lovac
    Onager Lovac
    Workshop Savvy

    Did you see my tool collection?


    Workshop SavvyDid you see my tool collection?


    Posts : 120
    Join date : 2015-06-18
    Age : 32

    Renaissance Sporting crossbow Empty Re: Renaissance Sporting crossbow

    Post by Onager Lovac Wed Jun 14, 2017 7:03 pm

    Sh*t ma , that beautiful!!!  first place
    Anatine Duo
    Anatine Duo
    Tinkerer

    If there is a will, there is a way.


    TinkererIf there is a will, there  is a way.


    Posts : 65
    Join date : 2013-10-07
    Location : Muskoka, Canada

    Renaissance Sporting crossbow Empty Re: Renaissance Sporting crossbow

    Post by Anatine Duo Thu Jun 15, 2017 3:35 am

    nice work, nice finishes, neat modular nut/cradle!
    avatar
    c sitas
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 547
    Join date : 2012-11-24

    Renaissance Sporting crossbow Empty Re: Renaissance Sporting crossbow

    Post by c sitas Fri Jun 16, 2017 2:46 pm

    The photo work is totally fantastic. Superb work in all.
    Dennis Greenaway
    Dennis Greenaway
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows


    Posts : 12
    Join date : 2017-02-18

    Renaissance Sporting crossbow Empty Re: Renaissance Sporting crossbow

    Post by Dennis Greenaway Sun Jun 18, 2017 6:20 pm

    Very good work, what is the poundage of the prod?
    avatar
    tony a
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows


    Posts : 5
    Join date : 2017-03-10
    Location : Ca.

    Renaissance Sporting crossbow Empty Re: Renaissance Sporting crossbow

    Post by tony a Mon Jun 19, 2017 2:10 am

    The prod is 70 lbs. made from alum, I also have the doubled ends heavy bow string made by Dave Watson. I will not be using the crossbow it will be hanging in my office, as I have admired the design of the crossbow. and always wanted to make one.
    Gnome
    Gnome
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 451
    Join date : 2011-10-16
    Age : 60
    Location : North Georgia

    Renaissance Sporting crossbow Empty Re: Renaissance Sporting crossbow

    Post by Gnome Fri Jun 30, 2017 7:55 am

    This is a beautiful piece! I haven't been on this forum for a while, it's great to catch up on some great builds. I'm intrigued by the bow irons. It looks like they're just installed with that bolt, with no tension to tighten the prod into the mortice to make it secure through the repeated shock of firing, like you would get with wedges or screws to tighten the irons down. Is your fit just that precise, or am I missing something? Again, just beautiful, love the peep-sight, too.
    Gnome
    avatar
    tony a
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows


    Posts : 5
    Join date : 2017-03-10
    Location : Ca.

    Renaissance Sporting crossbow Empty Re: Renaissance Sporting crossbow

    Post by tony a Fri Jun 30, 2017 4:57 pm

    Good show Gnome, I was curious if anyone was to ask this question. The bow iron stock hole is positioned so as to have tension during assembly with the irons, by bending the bow to line up the iron holes and installing the 5/16" bolt is now under tension. Note the stock hole is lined with a steel tube  bonded in the stock for additional durability. For additional tension a 5/16" set screw in a retainer nut pressed into a rosewood block is then tightened against the bow. See the photos they show all these details.
    Tony
    Gnome
    Gnome
    Crossbow Junkie

    I live here!


    Crossbow JunkieI live here!


    Posts : 451
    Join date : 2011-10-16
    Age : 60
    Location : North Georgia

    Renaissance Sporting crossbow Empty Re: Renaissance Sporting crossbow

    Post by Gnome Thu Jul 06, 2017 5:59 am

    Interesting. I had to give that some thought to make sure I understood what you meant. How far do you bend the bow when mounting the prod? Just enough to provide tension when the bow is unstrung, or far enough that the irons are still under tension when it is strung? Sounds like a pretty elegant solution and I am compelled to experiment with it. Is there a historical precedent?
    Gnome
    avatar
    tony a
    Fresh Blood

    Doesn't mean
    I'm new to crossbows


    Fresh Blood Doesn't meanI'm new to crossbows


    Posts : 5
    Join date : 2017-03-10
    Location : Ca.

    Renaissance Sporting crossbow Empty Re: Renaissance Sporting crossbow

    Post by tony a Thu Jul 06, 2017 11:06 am

    No more then 1/2" to bend the bow to align the holes and install the bolt. No historical precedent that I know of just a simple engineering application.
    Tony
