    My Medieval Arbalist project

    Tinker
    Tinker
    Techno Weeny Supreme
    Techno Weeny Supreme


    Posts : 75
    Join date : 2010-07-19
    Location : Idaho, USA

    My Medieval Arbalist project - Page 2 Empty My Medieval Arbalist project

    Post by Tinker Sat Aug 21, 2010 4:41 pm

    First topic message reminder :

    It's pretty quiet around here. Time to throw some fat in the fire. Some of these are basic but it would have been helpful to have seen some like this when I first started 'lurking'...

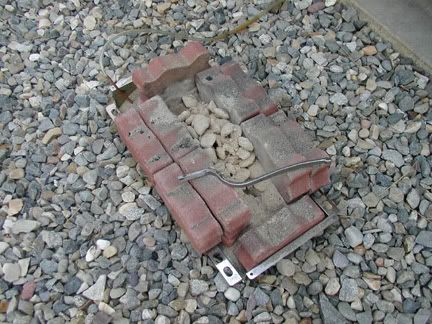

    With all of the junk and tools I have I do not own a propane torch, so I made this little 'quickie' mini-forge that utilizes charcoal briquets and injected air from my compressor... worked fine to form the tickler!

    My Medieval Arbalist project - Page 2 P1010038-Copy

    Here is where I am with it as of now. The string groove is not going to be made in the nut until I receive the string to see what the diameter is first. Going to have to do the carving on the tiller before binding the prod to it. ...Thinking now on maybe carving a dragon.

    My Medieval Arbalist project - Page 2 P1010048-Copy

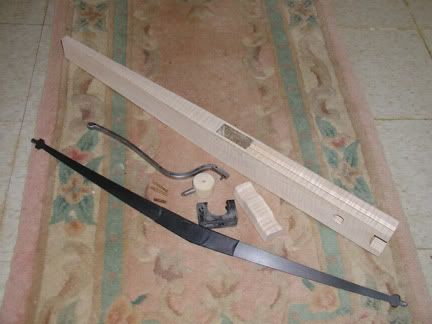

    My Medieval Arbalist project - Page 2 P1010051-Copy

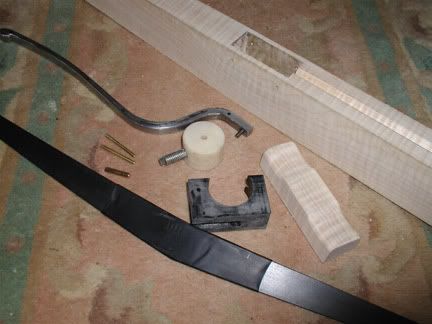

    My Medieval Arbalist project - Page 2 P1010052-Copy

    [EDIT] Discussion on fabricating a roll-nut block assembly >>> Link

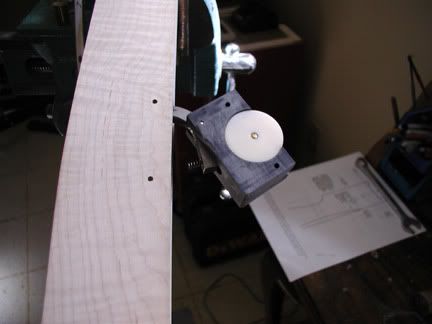

    My Medieval Arbalist project - Page 2 P1010053

    My Medieval Arbalist project - Page 2 P1010054

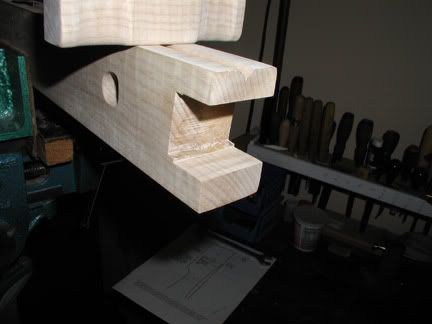

    My Medieval Arbalist project - Page 2 P1010050-Copy

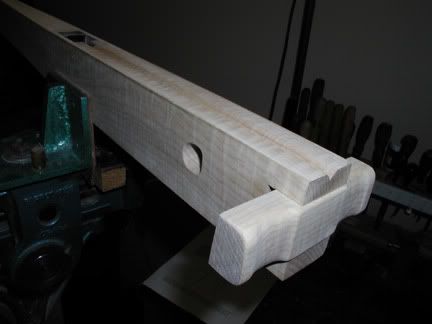

    My Medieval Arbalist project - Page 2 P1010049-Copy

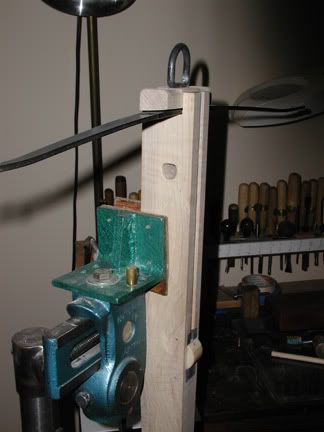

    My Medieval Arbalist project - Page 2 P1010055

    Noticed the photo of the nut block sitting on the tiller is "bas-ackwards"

    cheers Tinker


    Last edited by Ivo on Sun Sep 05, 2010 1:12 am; edited 1 time in total (Reason for editing : Adding a link to roll-nut block assembly discussion topic.)
    Ivo
    Ivo
    Admin
    Admin


    Posts : 1041
    Join date : 2009-11-25
    Age : 34
    Location : NJ, USA

    My Medieval Arbalist project - Page 2 Empty Re: My Medieval Arbalist project

    Post by Ivo Mon Sep 06, 2010 12:25 am

    You can actually order all kinds of archery tools, building materials, shafts, etc. all in one place online >>> http://www.3riversarchery.com/

    BTW, There is a good read on Thecrossbowmanden.com that touches the subject of shaft vs. track vs. string >>> TheCrossbowmansDen: Track Dimensions



    My Medieval Arbalist project - Page 2 Untitled
    * *
    ~ "I don't have any special talents. I'm only passionately curious."
    * * *
    ~ "All Genius is Simple"
    * *
    Tinker
    Tinker
    Techno Weeny Supreme
    Techno Weeny Supreme


    Posts : 75
    Join date : 2010-07-19
    Location : Idaho, USA

    My Medieval Arbalist project - Page 2 Empty All Finished....

    Post by Tinker Mon Sep 06, 2010 2:18 pm

    My Medieval Arbalist project - Page 2 P1010018

    My Medieval Arbalist project - Page 2 P1010017


    The bright light from the flash really makes the hair (tiger-stripe) on it's back really stand up...
    My Medieval Arbalist project - Page 2 P1010019

    smack Tinker
    Pavise
    Pavise
    Dear Friend, You will be Greatly Missed.
    Dear Friend, You will be Greatly Missed.


    Posts : 128
    Join date : 2010-02-07

    My Medieval Arbalist project - Page 2 Empty Re: My Medieval Arbalist project

    Post by Pavise Mon Sep 06, 2010 5:18 pm

    I'd be interested to learn how the nock end of your wooden bolt stands up Tinker. And are you going to put a bolt clip on that crossbow or just rely on a snug fit between the nut claws?

    Pavise
    Tinker
    Tinker
    Techno Weeny Supreme
    Techno Weeny Supreme


    Posts : 75
    Join date : 2010-07-19
    Location : Idaho, USA

    My Medieval Arbalist project - Page 2 Empty Re: My Medieval Arbalist project

    Post by Tinker Mon Sep 06, 2010 6:00 pm

    Pavise wrote:I'd be interested to learn how the nock end of your wooden bolt stands up Tinker. And are you going to put a bolt clip on that crossbow or just rely on a snug fit between the nut claws?

    Pavise

    At this point, I think a bolt clip would be an annoyance. My intention was to 'flat sides' the 23/64" shafts as I allowed the groove in the nut claw to be narrower for that purpose. Figure I will fabricate some sort of jig to make both sides uniform and consistent bolt to bolt. As far as to how the wooden bolt butt will stand up, "I have no idea". scratch (I do know however that a drop of 'Hot Stuff' cyanoacrilate will permeate end grain and make it tuff-as-hell. That was what the maple fins had been soaked with that shot through the backstop with no damage)
    The hickory shaft I made the bolt I was shooting from does not seem to show any butt-battering and it was uncoated, but of course it isn't cedar. I am going to get an order off for 'bolt-makins' as soon as I get confirmation on the Grayling fletching jigs abilities. [Grayling GOP160]

    Tinker
    Pavise
    Pavise
    Dear Friend, You will be Greatly Missed.
    Dear Friend, You will be Greatly Missed.


    Posts : 128
    Join date : 2010-02-07

    My Medieval Arbalist project - Page 2 Empty Re: My Medieval Arbalist project

    Post by Pavise Mon Sep 06, 2010 8:08 pm

    I have a whole bunch of Port Orford cedar 11/32" select shafts that I bought years ago for my longbow arrows and I intend to make some more crossbow bolts/arrows/quarrels from them. I have previously hardened the ends by scorching and have made fletchings from wooden craft sticks cut accordingly, and from thin chrome tanned leather splits or horse-hide. These are glued into shallow grooves cut to exact length and depth in my milling machine jig. The latter can also be done with the aid of a Dremel tool rig made for the job.

    I've also been thinking about pressure treating wooden shafts with resin etc., in order to make them more rigid and suitable for heavier weight prods. A lot of the wood and lumber we get these days has not lived long enough or under harsh enough conditions to provide what was available to the "bolters" and arrowsmiths of old. The late Robin Allen used to make some beautiful wooden bolts that were tapered and then fletched with leather and fitted with his cast bronze bodkins. But then he used to make a lot of beautiful things in that Den of his.

    Pavise
    Tinker
    Tinker
    Techno Weeny Supreme
    Techno Weeny Supreme


    Posts : 75
    Join date : 2010-07-19
    Location : Idaho, USA

    My Medieval Arbalist project - Page 2 Empty Re: My Medieval Arbalist project

    Post by Tinker Tue Sep 07, 2010 4:32 pm

    The vanes were thru-installed by cutting through the shaft with a slitting saw, then 'Hot-glued' with cyanoacrilate. I'm sure that is why the bloody thing shot through the backboard with no damage. (I have a small Palmgren milling attachment I can use on my lathe for limited milling operations)
    A trick of the muzzle-loaders is to fill a tube with coal oil (kerosene) and soak the rod, submerged, for a couple months. Doing so makes the rod more tenacious. Might be an idea with a bolt, except it would most probably prevent any kind of a glue bond being made on it. Might make one hell of a fire arrow... Wink
    Moon
    Moon
    Techno Weeny

    Lets put a laser on it!!!


    Techno WeenyLets put a laser on it!!!


    Posts : 55
    Join date : 2010-02-25

    My Medieval Arbalist project - Page 2 Empty Tinker

    Post by Moon Sun Dec 12, 2010 1:36 pm

    How's the crossbow project going?
    Tinker
    Tinker
    Techno Weeny Supreme
    Techno Weeny Supreme


    Posts : 75
    Join date : 2010-07-19
    Location : Idaho, USA

    My Medieval Arbalist project - Page 2 Empty Re: My Medieval Arbalist project

    Post by Tinker Thu Jan 24, 2013 12:44 pm

    Moon wrote:How's the crossbow project going?

    ....Morphed into an Excalibur Matrix 355 cheers
